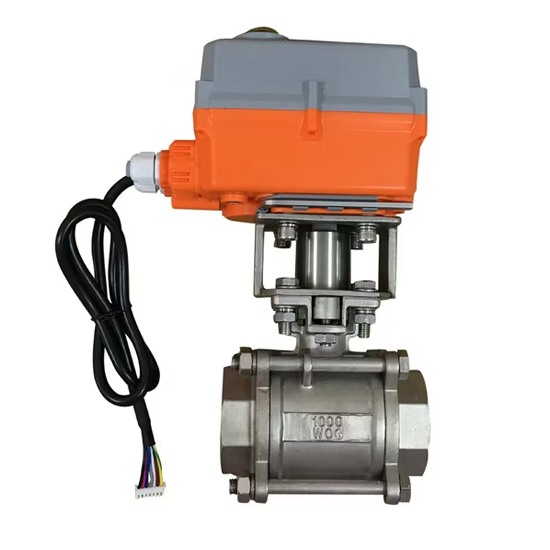

High Quality Oil/Gas/Air/Water Electric Ball Valve, Electric Actuator, 1000WOG, Motorised Ball Valve
- Product Name:
- Motorised Ball Valve,Ball Valve with Actuator
- Pressure:
- 1000WOG
- Application:
- Industrial Usage, Water Industrial Usage, Household Usage, Medical, Light Industry, Petroleum,Paper,Chemical
- Structure:
- Fixed Ball Valve
- Nominal Pressure:
- Pn16, Pn25, Pn40, Pn64
- Standard:
- ANSI , BS ,DIN , JIS
- Temperature:
- -20 to +180℃
- HS Code:
- 8481804090
Actuator Product Overview
| Rated Voltage | AC/DC95-265V, AC/DC24V, DC24/12V |
| Roted Torque | 110N.m(132N.m@Max) |
| Running Time | About 10S |
| Charge Time | 5 minutes |
| Install Valves | 2-way, 3-way ball valve and butterfly valve |
| Mechanical connector | ISO5211(F05, F07) |
| Motor | High performance brushless motor, it can be used up to 20000 times |
| Wiring and feedback model | KT32S/B3S/BD3S(General voltage), B2S(DC24/12V) |
| Material | It's full-plastic outlet case:ABS/PC+PET corrosion-proof Die casting base+metal gear box install, high hardness, durable. |
Ball Valve Overview
| Metal electric ball valve | Plastic electric ball valve | |
| Valve caliber | DN10-DN300 | DN10-DN100 |
| Connection model | Thread/Flange/Clamp | Thread/Flange/Order |
| Valve category | Three piece/two piece/three way | Through/three way |
| Body material | SS304/SS316/SS316L | UPVC/CPVC/PVDF |
| Medium | Material properties of gas, water, oil, other PH reference valve body | Acidic,alkaline,other compatible PVC chemical solutions |
| Medium temperature | -20 to +180ºC | No condensation at -5 to +60ºC |
| Nominal pressure | PN16, PN25, PN40, PN64 | PN16 |
| Application area | Widely used in food, environmental protection, medical, light industry, petroleum, paper, chemical, electric power and other professional equipment and other industrial automatic control system. | |
