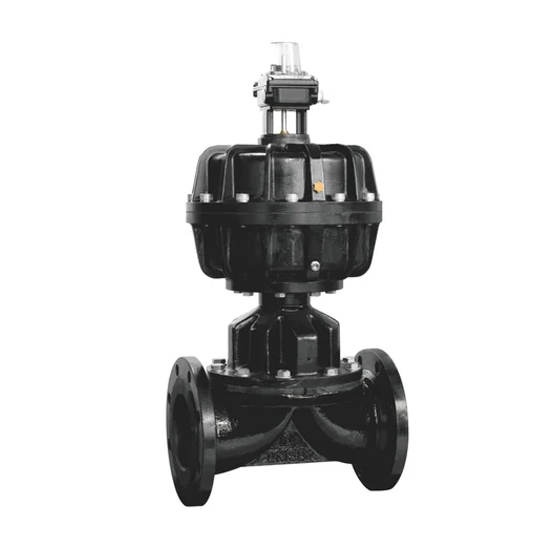

Rubber Lined Diaphragm Valve, Ductile Iron, DN150, Pneumatic

Key Specifications / Features

The Rubber Lined Diaphragm Valve Supplier offers a high-quality valve designed to meet BS 5156 and MSS SP-88 standards. This valve features a ductile iron body with a rubber lining, ensuring durability and resistance to corrosive and abrasive media. It has a DN150 size (equivalent to 6 inches), a PN10 pressure rating (equivalent to Class 150 LB), and RF flanged ends for secure connections. The valve is equipped with a pneumatic actuator for efficient and reliable operation.

The diaphragm valve is specifically designed to control non-corrosive or generally corrosive media. The valve body surface can be unlined or lined with various types of rubber, offering options for different applications. It is suitable for a range of working temperatures and fluid pipelines. The diverse lining materials provide good corrosion resistance and are compatible with various media. The valve body and cover are separated by an intermediate diaphragm, which prevents the valve cover and stem components above the diaphragm from being eroded by the medium. The diaphragm valve is a special type of globe valve.

Standards Compliance and Design Features

» Size: 3/4-16 Inch (DN20-DN400)
» Pressure Rating: ANSI Class 125 LB, Class 150 LB, PN6, PN10, PN16
» All Standards: MSS SP-88, BS 5156, ASME B16.34, DIN 3202, ASME B16.1, BS EN 558, ASME B16.5 CL150, EN 1092, EN 12226, ISO 5208, API 598, BS 4504 or equivalents
» Material: Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, ASTM A216 WCB, A351 CF8, CF8M
» Optional Lining: Hard Rubber (Ebonite), Natural, Neoprene, Hypalon, Butyl, EPDM, FEP, PFA
» Diaphragms: Natural Rubber, Butyl, EDPM, Hard Rubber, etc.
» Ends Connections: Flanged RF or FF, Screwed
» Operation: Handwheel, Pneumatic, Electric Operated
» Temperature Range: -29°C to 80°C
» Optional Locking Device Position indicator
» Optional Direct Mounting to ISO 5211
» Regular Bore

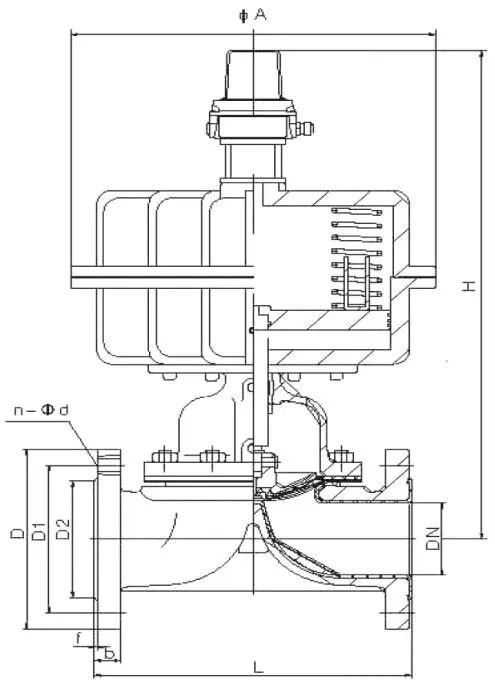

Structural Diagram

Main Material
