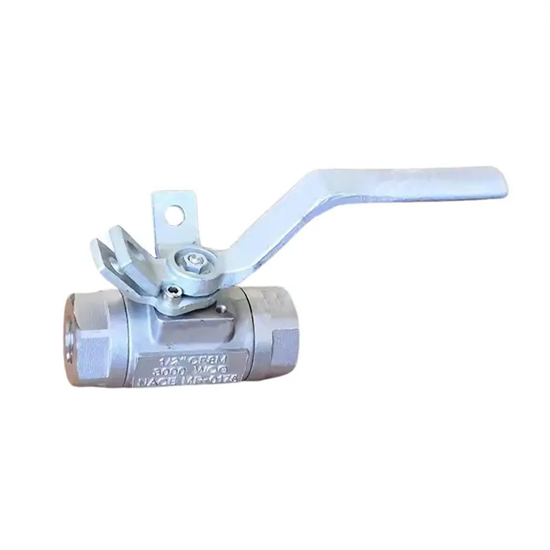

3000 WOG Ball Valve, ASTM A182 F316, 1/2 Inch, 3 Piece, FNPT

Key Specifications / Features

The 3000 WOG Ball Valve from this Chinese supplier is a high-quality, forged stainless steel valve designed for durability and reliability. It adheres to stringent standards such as ASME B16.34 and ASTM A182 F316, ensuring superior performance. This 3-piece valve features a 1/2 inch (DN15) size with FNPT threaded ends, making it suitable for various applications. Its lever-operated design allows for easy and efficient operation.

Forged steel ball valves are available in two types: two-piece split body and three-piece bolted body. The forged material provides sufficient rigidity and strength under maximum-rated operating pressure, eliminating the inherent flaws of cast materials. The valves feature adequate wall thickness and high-strength tie bolts, which facilitate maintenance and can withstand the stress of the pipeline. The internal components of the valve are carefully designed and selected to ensure reliability under various working conditions.

Technical Specification

» Type: Forged Steel Ball Valve
» Size Range: 1/2 inch to 2 inches for forged items
» Temperature Range: -29°C to 150°C
» Design Pressure: Class 150 to 1500 LB (PN10-PN250)
» Materials: Carbon Steel, Alloy Steel, Stainless Steel, Duplex Steel, and other materials
» Trim Materials: 13%Cr, SS 304, SS 304L, SS 316, SS 316L, and other special materials
» Seat Materials: PTFE, RPTFE, PEEK
» End Connections: SW, FNPT, BW
» Design and Manufacture: ASME B16.34, API 602
» Face to Face (End to End): ANSI B16.10
» Flanged Connection: ANSI B16.5
» Test and Inspection: API 598, API 6D
» Butt Welded End: ANSI B16.9
» Threaded Ends: ASME B1.20.1
» Socket-Weld Ends: ASME B16.11

Product Features

Forged Steel Floating Ball Valves manufactured are available in three types: One Piece Uni-body, Two Piece Split Body, and Three Piece Bolted Body. These valves are designed and manufactured in accordance with the most updated international standards, including API 6D, ASME B16.34, BS 5351, or their equivalents.
Fire Safe: Ensures the valve remains functional and safe in the event of a fire.
Anti-static: Prevents the buildup of static electricity, reducing the risk of ignition.
Blow-out Proof: Provides enhanced safety by preventing the stem from dislodging under pressure.
