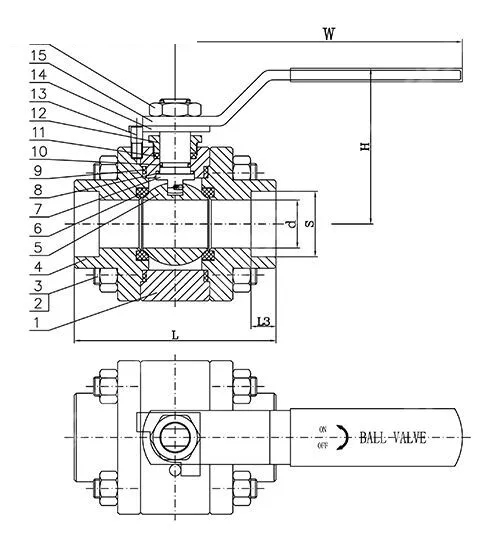

ASTM A105N Ball Valve, ASME B16.34, 3/4 Inch, 800 LB, Lever

Key Specifications / Features

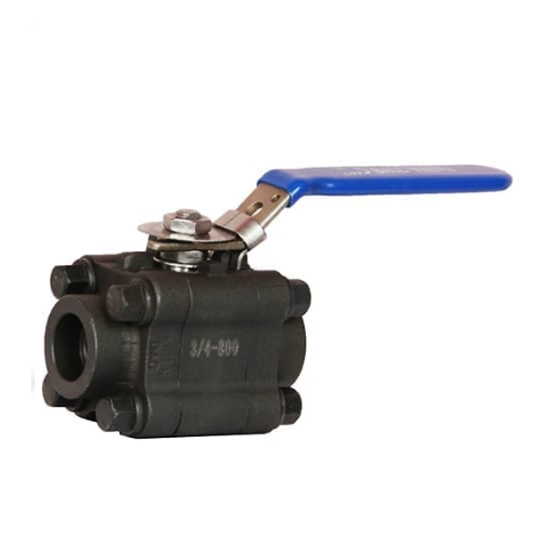

This Forged Steel Ball Valve, with a 3-piece body design, adheres to ASME B16.34 standards and is crafted from carbon steel ASTM A105N for superior strength and durability. With a 3/4-inch size (DN20), Class 800 LB pressure rating, and PN130 compatibility, it is built for high-pressure applications. The valve features SW (Socket Weld) ends for secure installation and is lever-operated for ease of use.

Forged Steel Ball Valves are available in Two-Piece Split Body and Three-Piece Bolted Body types. The forged material ensures sufficient rigidity and strength under the maximum rated operating pressure, without the inherent flaws found in cast valves. The valve's separate body features adequate wall thickness, and the use of high-strength tie bolts makes maintenance easier and ensures the valve can withstand the stress from the pipeline. The internal components are carefully designed and selected to ensure reliability under various working conditions.

Technical Specification

Size Range: 1/2-2 Inch for Forged Items
Temperature Range: -29°C to +150°C
Design Pressure: Class 150-1500 LB (PN10-PN250)
Materials: Carbon Steel, Alloy Steel, Stainless Steel, Duplex Steel and Other Materials
Trim Materials: 13% Cr, SS 304, SS 304L, SS 316, SS 316L and other special materials
Seat Materials: PTFE, RPTFE, PEEK
End Connections: SW, FNPT, BW
Design and Manufacture: ASME B16.34, API 602
Face to Face (End to End): ANSI B16.10
Flanged Connection: ANSI B16.5
Test and Inspection: API 598, API 6D
Butt Welded End: ANSI B16.5
Threaded Ends: ASME B1.20.1
Socket-Weld Ends: ASME B16.11

Product Features

Forged Steel Floating Ball Valves are available in One-Piece Uni-body, Two-Piece Split Body, and Three-Piece Bolted Body types. These valves are designed and manufactured according to the latest international standards, including API 6D, ASME B16.34, BS 5351, or their equivalents. Standard features include Fire Safe, Anti-static, and Blow-out prevention for enhanced safety and reliability.
