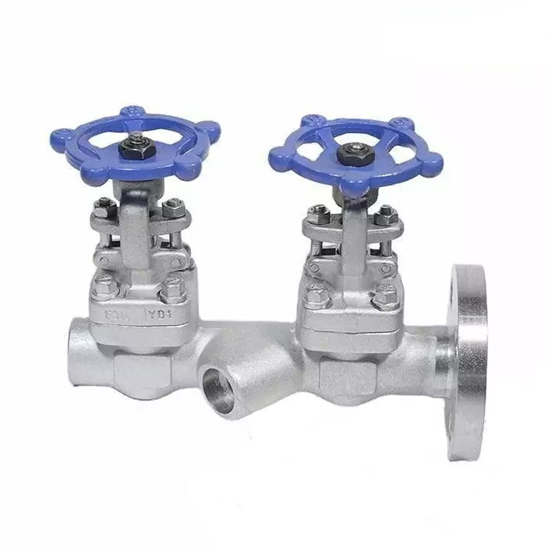

API 602 Double Gate Valve, A182 F316, 3/4 IN, CL150, RF*FNPT

Key Specifications / Features

The API 602 Double Gate Valve is a high-quality forged stainless steel valve made from ASTM A182 F316 material. It features a compact 3/4 inch (DN20) size and is rated for a pressure class of 150 LB (PN20). The valve is designed with RF (Raised Face) and FNPT (Female National Pipe Thread) ends, ensuring reliable and leak-free connections. This valve is ideal for applications requiring durability, corrosion resistance, and precise flow control, making it a versatile choice for various industrial processes.

Forged Steel Gate Valves are meticulously designed and manufactured in strict adherence to International Standards such as API 602, ASME B16.34, DIN3202, or their equivalents. These valves feature a compact yet extremely robust construction, making them suitable for high-pressure and high-temperature applications. The optional solid CoCr alloy wedge ensures low friction and extended service life. The packing rings are precompressed to 4000 psi, providing a highly reliable seal. For welded bonnet valves, the bonnet is threaded in and tightened to a precisely engineered torque value, and the body-bonnet joint is strength-welded, offering dual protection against leakage (through body and bonnet threads as well as the strength-weld). The fully guided wedge design minimizes wear on seating surfaces. Optional features include double packing, leak-off connection, live-loading, and a packing blowout mechanism for easy removal of old packing.

Technical Specification

» Size Range: 1/2-2 Inch (Forged Items)
» Design Pressure: Class 150-1500 LB (PN10-PN250)
» Materials: Carbon Steel, Alloy Steel, Stainless Steel, Duplex Steel, and other special alloys
» Trim Materials: 13%Cr, ASTM A182 F11, F22, SS 304, SS 304L, SS 316, SS 316L, and other specials
» End Connections: SW (Socket Weld), BW (Butt Weld), RF (Raised Face) Flange
» Design & Manufacture Standards: ASME B16.34, API 602
» Face-to-Face (End-to-End): ANSI B16.10
» Flanged Connection: ANSI B16.5
» Butt Weld End: ANSI B16.5
» Socket-Weld Ends: ASME B16.11
» Test & Inspection: API 598, API 6D

Product Features

» OS&Y (Outside Stem and Yoke): This design allows for easy inspection and maintenance of the valve stem without disassembling the valve from the pipeline.
» Metal-sealed (API Trim #1, #5, #8, #10, and others): The valves are equipped with metal-to-metal sealing, ensuring high reliability and durability under various operating conditions.
» Optional Locking Device or Stem Extension: Available options include a locking device for added security or a stem extension for easier operation and accessibility.
» Optional Bolted Bonnet or Welded Bonnet: Customers can choose between a bolted bonnet for ease of maintenance or a welded bonnet for enhanced integrity and leak prevention.
» Optional Direct Mounting to ISO 5211: The valves can be directly mounted to actuators conforming to the ISO 5211 standard, facilitating integration into automated control systems.
» Full Bore or Reduced Port: Available in both full bore and reduced port configurations to meet different flow requirements and system designs.
