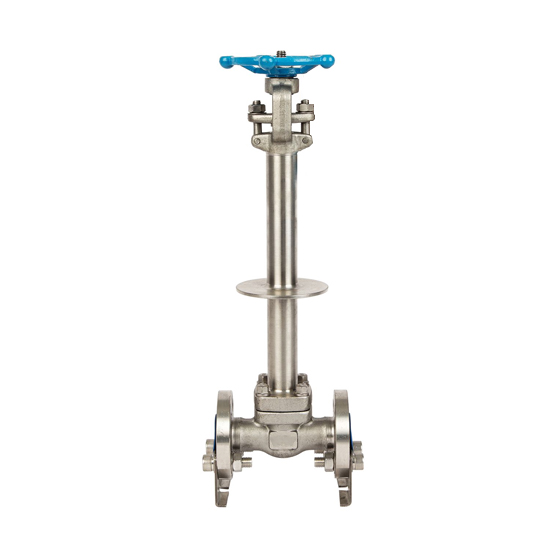

ASTM A182 F304L Gate Valve, API 602, 1 IN, 600 LB, Cryogenic

Key Specifications / Features

The ASTM A182 F304L Gate Valve Plant offers high-quality cryogenic gate valves designed for extreme low-temperature applications, such as handling LPG and LNG. These valves comply with API 602 standards, featuring a 1-inch (DN25) size and a robust Class 600 LB (PN100) pressure rating. With butt-welded ends, they ensure secure and leak-free connections, making them ideal for critical industrial processes.

Cryogenic Gate Valves are designed and manufactured in strict compliance with international standards such as API 602, ASME B16.34, DIN 3202, or their equivalents. They feature a compact yet robust structure, ideal for high-pressure and high-temperature cryogenic applications. An optional solid CoCr alloy wedge ensures low friction and extended service life. Packing rings are precompressed to 4000 psi, providing a high-integrity seal. In welded bonnet configurations, the bonnet is threaded and torqued to a specified value, then strength-welded to the body, offering dual leakage protection through both threaded and welded joints. The fully guided wedge minimizes seat surface wear. Optional features include double packing, leak-off connection, live-loading, and a packing blowout design for easy replacement.

Technical Specification

» Type: Cryogenic Gate Valve
» Size Range: 1/2 inch to 2 inches for forged items
» Design Pressure: Class 150-1500 LB (PN10-PN250)
» Materials: Carbon Steel, Alloy Steel, Stainless Steel, Duplex Steel, and others
» Trim Materials: 13%Cr, ASTM A182 F11, F22, SS 304, SS 304L, SS 316, SS 316L, and other special materials
» End Connections: SW, BW, RF
» Design and Manufacture: ASME B16.34, API 602
» Face to Face (End to End): ANSI B16.10
» Flanged Connection: ANSI B16.5
» Test and Inspection: API 598, API 6D
» Butt Welded End: ANSI B16.9
» Socket-Weld Ends: ASME B16.11

Product Features

» OS&Y, Outside Stem and Yoke
» Metal-sealed (API Trim #1, #5, #8, #10, etc.)
» Optional Locking Device or Stem Extension
» Optional Bolted Bonnet, Welded Bonnet
» Optional Direct Mounting to ISO 5211
» Full Bore or Reduce Port
