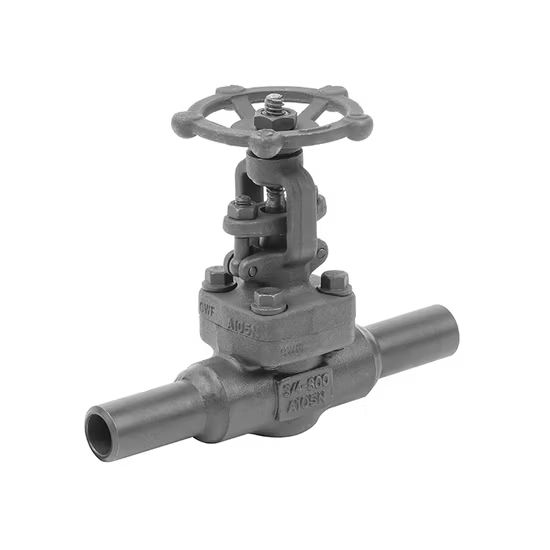

ASTM A352 LF2 Gate Valve, API 602, 3/4 IN, CL800, Extended Body, BW

Key Specifications / Features

The ASTM A352 LF2 Gate Valve Supplier offers extended body gate valves designed to meet API 602 standards, crafted from low-temperature carbon steel. These valves are available in customized sizes and feature a Class 800 LB pressure rating, ensuring they can handle high-pressure applications. With butt weld ends, they provide a secure and reliable connection, making them ideal for demanding industrial environments.

Forged Steel Gate Valves are engineered and manufactured in strict accordance with international standards such as API 602, ASME B16.34, DIN 3202, or their equivalents. Featuring a compact yet robust design, these valves are built for high-pressure and high-temperature service.
An optional solid CoCr alloy wedge provides low friction and extended service life. Packing rings are pre-compressed to 4000 psi, ensuring a high-integrity seal. For welded bonnet valves, the bonnet is threaded and tightened to a precise torque value, with the body-bonnet joint strength-welded to deliver double protection against leakage.
The fully guided wedge reduces wear on seating surfaces, enhancing valve durability. Optional features include double packing, leak-off connections, live-loading, and packing blowout protection for easy removal and replacement of packing material.

Technical Specification

» Size Range: 1/2-4 Inch (DN15-DN100) (for Forged Items)
» Design Pressure: Class 150-2500 LB (PN10-PN420)
» Materials: Carbon Steel, Alloy Steel, Stainless Steel, Duplex Steel, etc
» Trim Materials: 13%Cr, ASTM A182 F11, F22, SS 304, SS 304L, SS 316, SS 316L, and other specials
» End Connections: SW, FNPT, BW, RF, RTJ, Grooved
» Design and Manufacture: ASME B16.34, API 602
» Face to Face (End to End): ANSI B16.10
» Flanged Connection: ANSI B16.5
» Test and Inspection: API 598, API 6D
» Butt Welded Ends: ANSI B16.5
» Threaded Ends: ASME B1.20.1
» Socket-Weld Ends: ASME B16.11

Product Features

» OS&Y (Outside Stem and Yoke) design
» Metal-sealed trims available (API Trim #1, #5, #8, #10, etc.)
» Optional locking device or stem extension
» Available with bolted bonnet, welded bonnet, or pressure-sealed bonnet
» Optional direct mounting to ISO 5211
» Full bore or reduced port options
