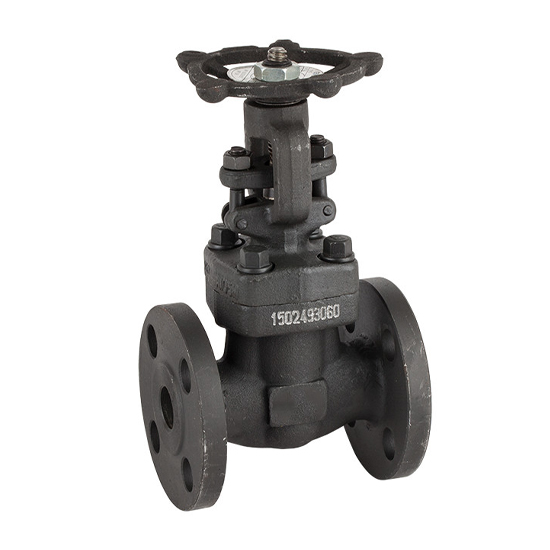

Custom Forged Gate Valve, API 602, ASTM A105N, Bolted Bonnet

Key Specifications / Features

The China Custom Forged Gate Valve Supplier offers a range of Forged Steel Gate Valves that are designed to meet API 602 standards and are made from ASTM A105N forged steel. These valves feature a bolted bonnet design, ensuring durability and reliability in high-pressure applications. They are available in customized sizes and pressure ratings, with RF (Raised Face) flanged ends for secure connections. The valves are suitable for a variety of industrial applications, including those involving water, gas, oil, and other media.

Forged Steel Gate Valves are meticulously designed and manufactured in strict accordance with international standards such as API 602, ASME B16.34, DIN 3202, or equivalent. These valves feature a compact yet extremely robust design, making them ideal for high-pressure and high-temperature applications. The optional solid CoCr alloy wedge ensures low friction and extended service life. The packing rings are precompressed to 4000 psi, providing a highly reliable seal. For welded bonnet valves, the bonnet is threaded in and torqued to an engineered torque value, and the body-bonnet joint is strength-welded, offering dual protection against leakage (body, bonnet threads, and strength-weld). The fully guided wedge reduces wear on seating surfaces. Optional designs are available with double packing, leak-off connection, live-loading, and a packing blowout feature for easy removal of old packing.

Technical Specification

» Type: Forged Steel Gate Valve
» Size Range: 1/2 inch to 2 inches for forged items
» Design Pressure: Class 150-2500 LB (PN10-PN420)
» Materials: Carbon Steel, Alloy Steel, Stainless Steel, Duplex Steel, and others
» Trim Materials: 13%Cr, ASTM A182 F11, F22, SS 304, SS 304L, SS 316, SS 316L, and other special materials
» End Connections: SW, FNPT, BW, RF, RTJ, Grooved
» Design and Manufacture: ASME B16.34, API 602
» Face to Face (End to End): ANSI B16.10
» Flanged Connection: ANSI B16.5
» Test and Inspection: API 598, API 6D
» Butt Welded End: ANSI B16.9
» Threaded Ends: ASME B1.20.1
» Socket-Weld Ends: ASME B16.11

Product Features

» OS&Y (Outside Stem and Yoke): Facilitates easy maintenance and inspection.
» Metal-Sealed (API Trim #1, #5, #8, #10, etc.): Ensures reliable sealing performance.
» Optional Locking Device or Stem Extension: Enhances operational safety and convenience.
» Optional Bonnet Designs: Bolted Bonnet, Welded Bonnet, or Pressure Sealed Bonnet.
» Optional Direct Mounting to ISO 5211: Facilitates easy actuator integration.
» Full Bore or Reduced Port: Available to meet specific application requirements.
