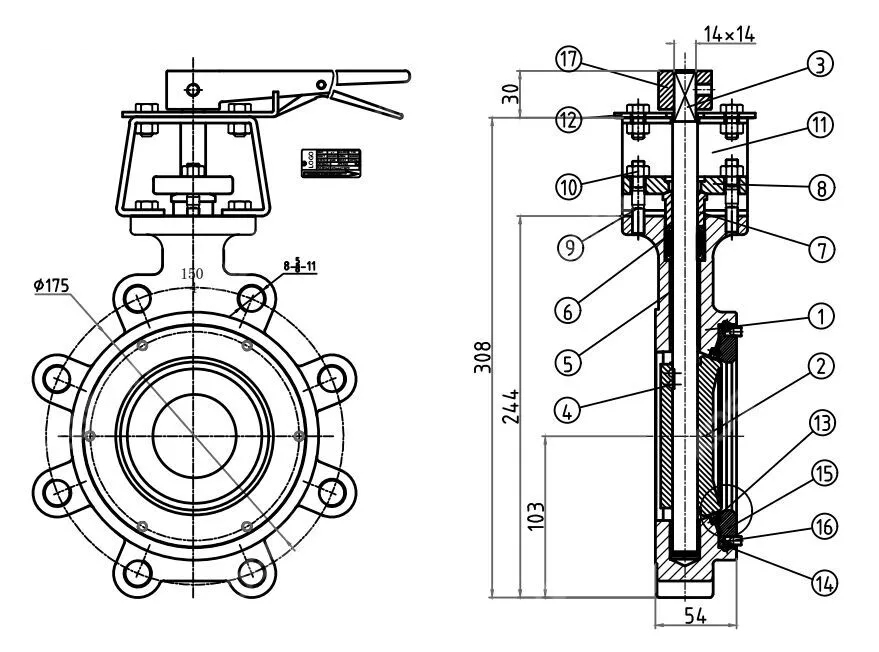

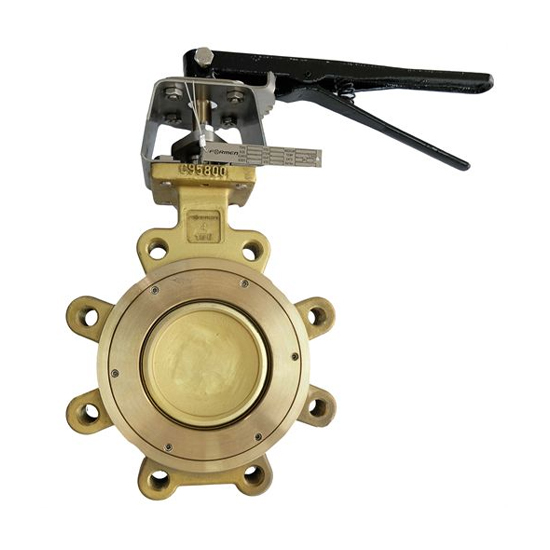

High Performance Butterfly Valve, C95800, 4 IN, CL150, Lug

Key Specifications / Features

This High-Performance Butterfly Valve features a double-offset design, conforming to API 609 Category B standards. Crafted from ASTM B148 C95800 material, it ensures durability and corrosion resistance. With a 4-inch size, Class 150 LB pressure rating, bi-directional functionality, and lug ends, it is ideal for reliable flow control in demanding industrial applications.

The bronze double-offset high-performance butterfly valve is a versatile and durable solution designed for a wide range of applications. Featuring a bi-directional design and a blow-out-proof shaft, it ensures reliable operation even under demanding conditions. The valve offers customization options, including soft seat, metal seat, and fire-safe seat configurations, tailored to meet specific customer needs. This adaptability enhances its functionality and compatibility across various industries and environments. With its robust construction and flexible features, the flanged double-offset high-performance butterfly valve in bronze provides a reliable and efficient flow control solution, making it ideal for numerous industrial sectors.

Technical Specifications

» Design: Double Offset Type
» Size Range:
   Class 150 LB: 2-48 Inch
   Class 300 LB: 2-48 Inch
   Class 600 LB: 2-24 Inch
» Pressure Rating: Class 150-600 LB, PN10-PN40, 10K-20K
» Standard: API 609 Category B
» Body Material: Aluminium Bronze (ASTM B148 C95800, C83600, B584 C84400, ASTM B62)
» Disc Material: Aluminium Bronze (ASTM B148 C95800, C83600, B584 C84400, ASTM B62)
» Shaft Material: MONEL K500
» Shutoff Rating: Class VI, Bubble Tight
» Certifications: API 607, PED
» Valve Seat Design: Unique Valve Seat Design with optional seating materials
» Optional Seatings: RTFE (Resilient)
» Operation Types: Handle, Worm Gear, Pneumatic, Electric
» Temperature Range:
   Soft Seat: -29°C to 260°C
   Metal Seat: -51°C to 550°C
   Metal Seat (Cryogenic): -196°C to 121°C
   Fire-Safe Seat: -51°C to 550°C
» End Connections: Wafer, Lug, RF Flange

Application Scope

» Chemical & Petrochemical: Liquefied Gas, Refrigeration
» Heavy Industrial: Power and Co-Generation Plants, Steel and Iron Works
» Commercial: Pulp and Paper Mills, Oil Refineries
» Marine & Shipbuilding: Hydrocarbon Processing, Gas Piping, Local Area Energy Supply
» Construction: Industrial and Marine Applications
