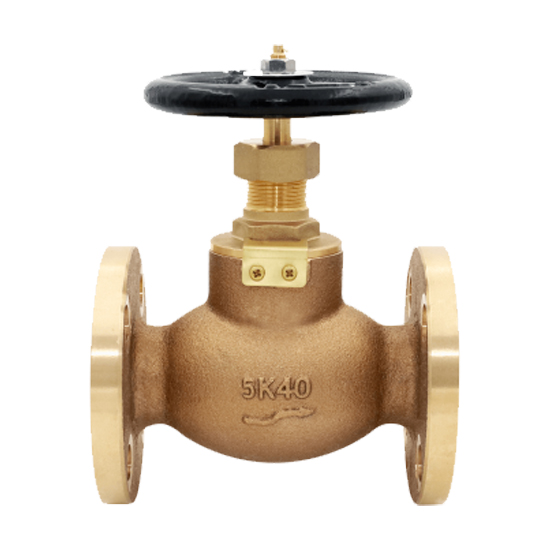

Cast Bronze BC6 Globe Valve, JIS 7301, 40A, 5K, 1-1/2 IN, FF
- Product Name:
- Cast Bronze BC6 Globe Valve
- Design Standard:
- JIS F7301
- Body Material:
- Cast Bronze BC6
- Size:
- JIS 40A (1-1/2 Inch)
- Pressure:
- JIS 5K
- End Connection:
- FF Flanged
- Operation:
- Handwheel
Key Specifications / Features
The Cast Bronze BC6 Globe Valve, designed according to JIS F7301 standards, offers reliable performance in fluid control applications. With a JIS 40A (1-1/2 inch) size and JIS 5K pressure rating, this valve ensures durability and strength. Handwheel operated for precise flow regulation, it features FF flanged ends for secure, leak-proof connections, ideal for various marine applications.
Product Range
» Structure: Upper threaded stem stop valve
» Port Size Range: JIS 15A-100A, 1/2-4 Inch
» Pressure: JIS 5K, JIS 16K
» Temperature: -29°C to 345°C
» Body Material: Bronze BC6, Bronze ASTM B148 C95800
» Medium: Sea Water, Fresh Water, Oil, etc.
Marine valves are essential components used to control the pressure, flow rate, and flow direction of fluids in ship pipelines, designed to withstand the unique environmental conditions of marine applications. These valves serve as control devices within fluid pipelines, performing key functions such as connecting or shutting off the flow of medium, changing its direction, adjusting pressure and flow rate, and protecting the normal operation of pipeline equipment.

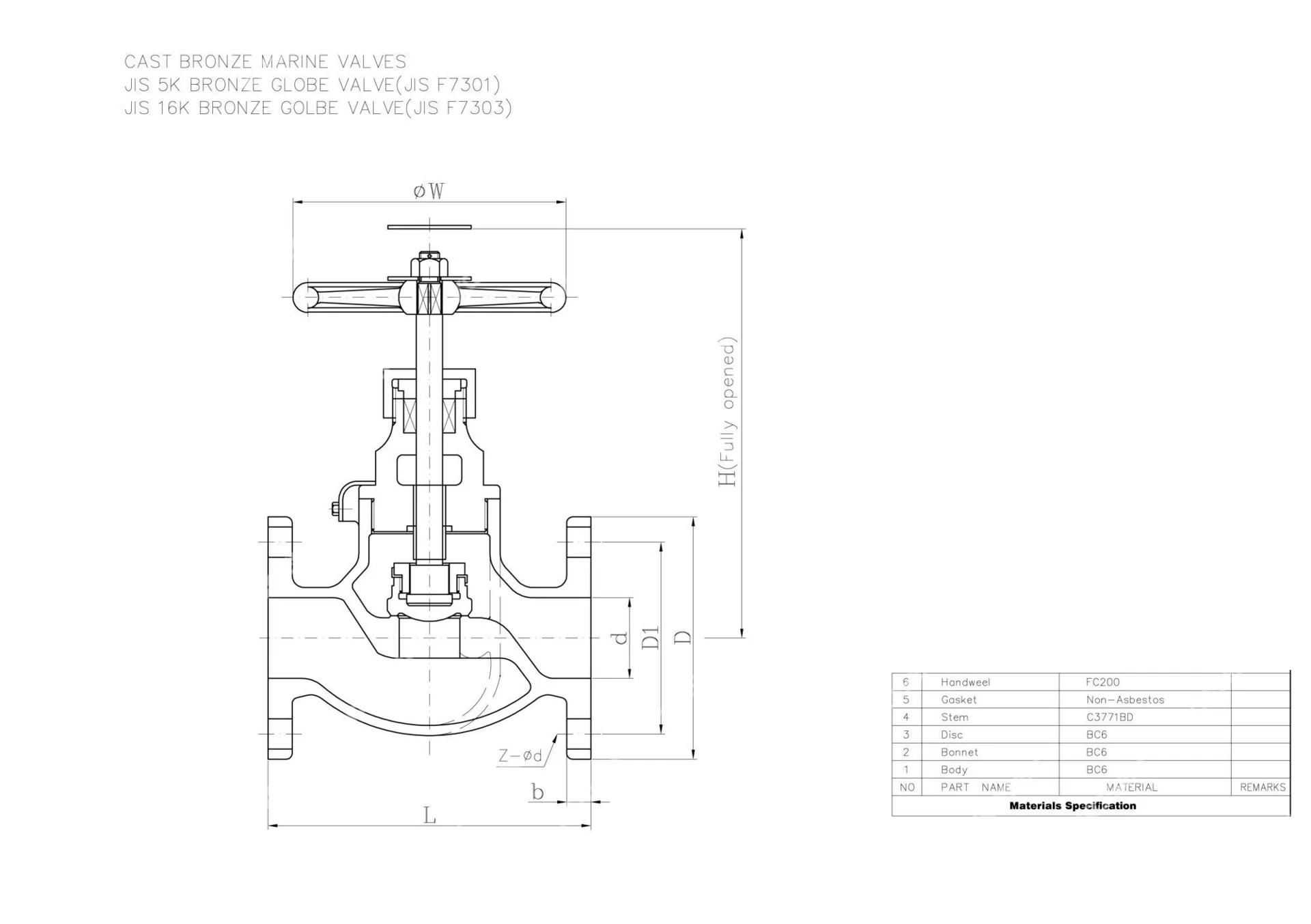

Materials of Main Parts
| NO | Part name | Material |
| 1 | Body | BC6 |
| 2 | Bonnet | BC6 |
| 3 | Disc | BC6 |
| 4 | Stem | C3771BD |
| 5 | Gasket | Non-asbestos |
| 6 | Handweel | FC200 |
