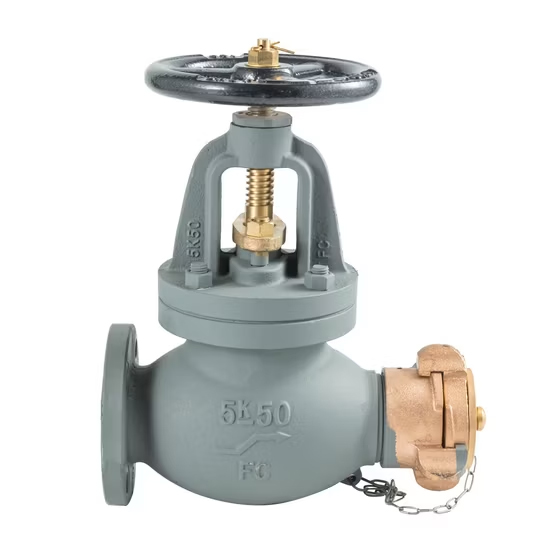

Cast Iron Hose Globe Valve, JIS F7333, FC200, 5K, 50A, 2 IN
- Product Name:
- Cast Iron Hose Globe Valve
- Design Standard:
- JIS F7333
- Body Material:
- Cast Iron FC200
- Size:
- JIS 50A, 2 Inch
- Pressure:
- JIS 5K
- End Connection:
- FF Flanged
- Operation:
- Handwheel
Key Specifications / Features
The Cast Iron Hose Globe Valve complies with JIS F7333 standards and features a durable FC200 body. With a JIS 50A, 2-inch size and a JIS 5K pressure rating, it is designed for reliable flow control in various applications. The valve operates via a handwheel for easy manual adjustment and includes FF flanged ends for secure installation, making it ideal for hose connections.
Product Range
Structure: Upper threaded stem stop valve
Port Size: 50A–65A, 2 Inch – 2-1/2 Inch
Pressure: JIS 5K, JIS 10K
Temperature Range: -29°C to 345°C
Body Material: Ductile Iron, Carbon Steel, Stainless Steel
Connection: FF Flange
Medium: Sea water, fresh water, oil, etc.
Marine valves are essential equipment used to control the pressure, flow rate, and direction of fluids in ship pipelines, designed to withstand the challenging environmental conditions on board. These valves function as control devices within fluid pipelines, serving the primary roles of opening or closing the flow of the medium, altering the flow direction, adjusting the pressure and flow rate, and ensuring the protection and smooth operation of pipeline equipment.

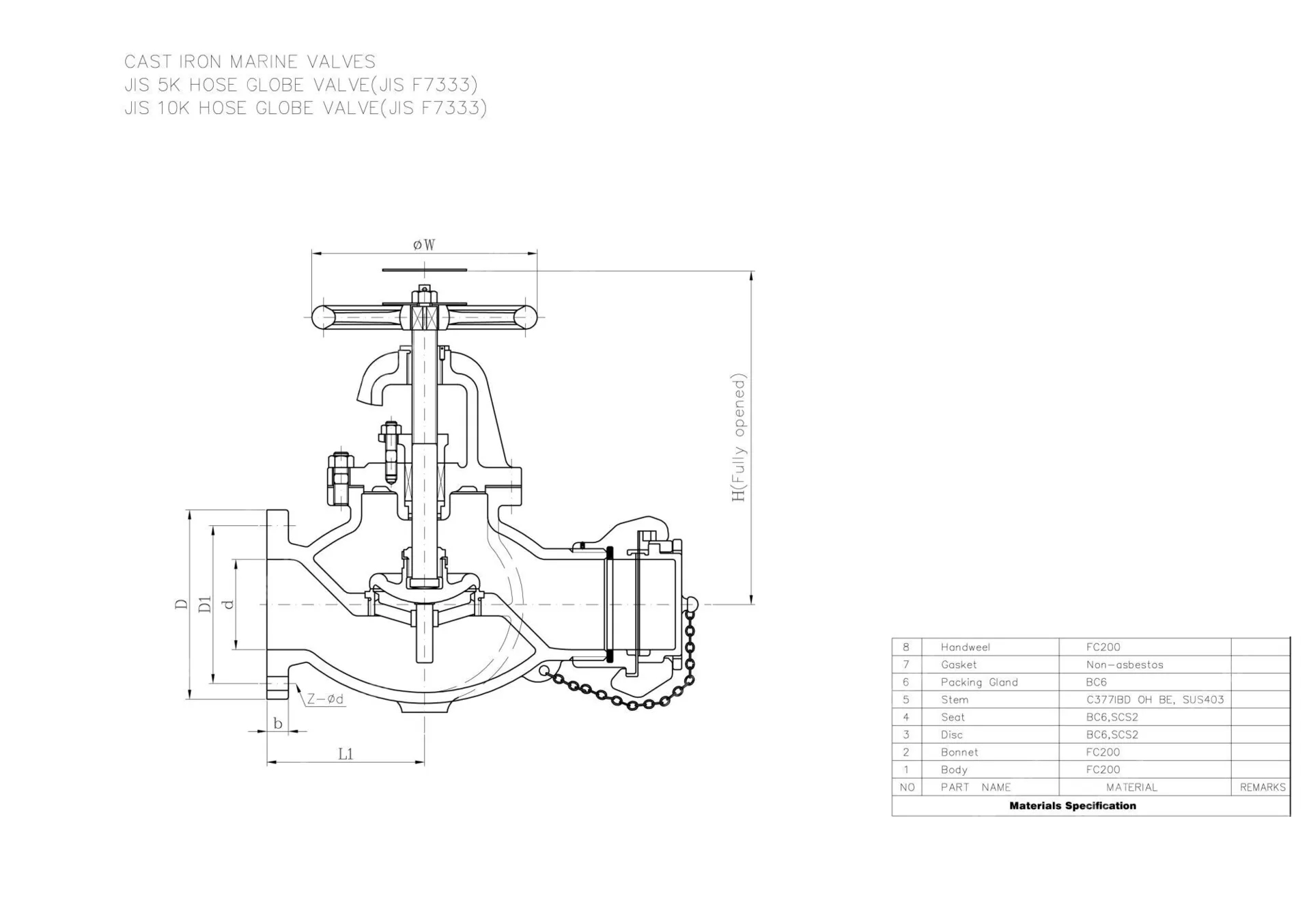

Materials of Main Parts
| NO | Part Name | Material |
| 1 | Body | FC200 |
| 2 | Bonnet | FC200 |
| 3 | Disc | BC6, SCS2 |
| 4 | Seat | BC6, SCS2 |
| 5 | Stem | C377IBD OH BE, SUS 403 |
| 6 | Packing Gland | BC6 |
| 7 | Gasket | Non-asbestos |
| 8 | Handweel | FC200 |
