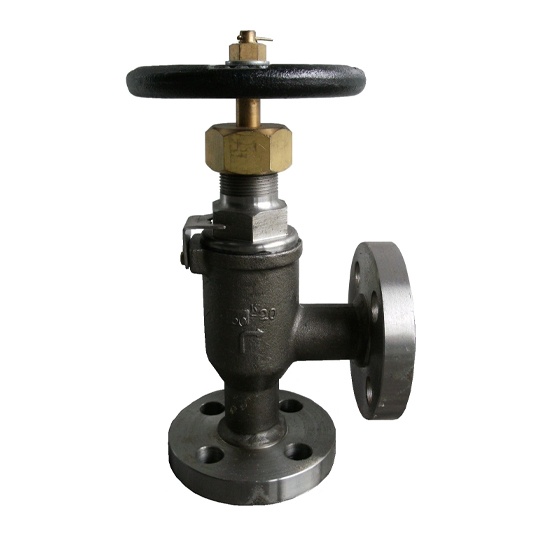

Marine Angle Globe Valve, JIS F7422, SF440, S25C, 15A, 20K
- Product Name:
- Marine Angle Globe Valve, Forged Steel
- Design Standard:
- JIS F7422
- Body Material:
- SF440 or S25C
- Size:
- JIS 15A
- Pressure:
- JIS 20K
- End Connection:
- RF Flanged
- Operation:
- Handwheel
Key Specifications / Features
This Marine Angle Globe Valve, designed in accordance with JIS F7422 standards, features a forged steel body made from SF440 or S25C materials, ensuring robust strength and corrosion resistance. It complies with JIS 15A and JIS 20K standards, making it ideal for marine applications. The valve is equipped with RF (Raised Face) flanged ends and is operated using a handwheel.
Marine globe valves are devices used to control the pressure, flow rate, and direction of fluids in ship pipelines. These valves help meet the environmental conditions of ships. A valve is a control device for fluid pipelines. Its basic functions include connecting or cutting off the flow of the pipeline medium, changing the flow direction, adjusting the pressure and flow rate, and protecting the normal operation of pipeline equipment.
Materials of Main Parts
| NO | Part Name | Material |
| 1 | Body | SF440 or S25C |
| 2 | Flange | SF440 or S25C |
| 3 | Bonnet | SF440 or S25C |
| 4 | Disc | SUS420JI or J2 |
| 5 | Disc Nut | Non-asbestos |
| 6 | Stem | FC200 |
| 7 | Handweel | FC200 |
| 8 | Packing Bush | C3771BD |
| 9 | Gland Nut | C3771BD |
| 10 | Packing Gland | C3771BD |
| 11 | Hexagon Nut | C3771BD |
| 12 | Split Pin | C2600W |
| 13 | Set Screw | S45C |
| 14 | Bonnet Nut | SF440 |
| 15 | Disc Lock Washer | SUS304 |
| 16 | Union Nut | S25C |
| 17 | Nipple for Copper Pipe | CAC201 or C1100 BD |
| 18 | Nipple for Steel Pipe | S25C |
| 19 | Packing | Non-Asbestos |
| 20 | Gasket | Non-Asbestos |
| 21 | Nameplate | SS304 |

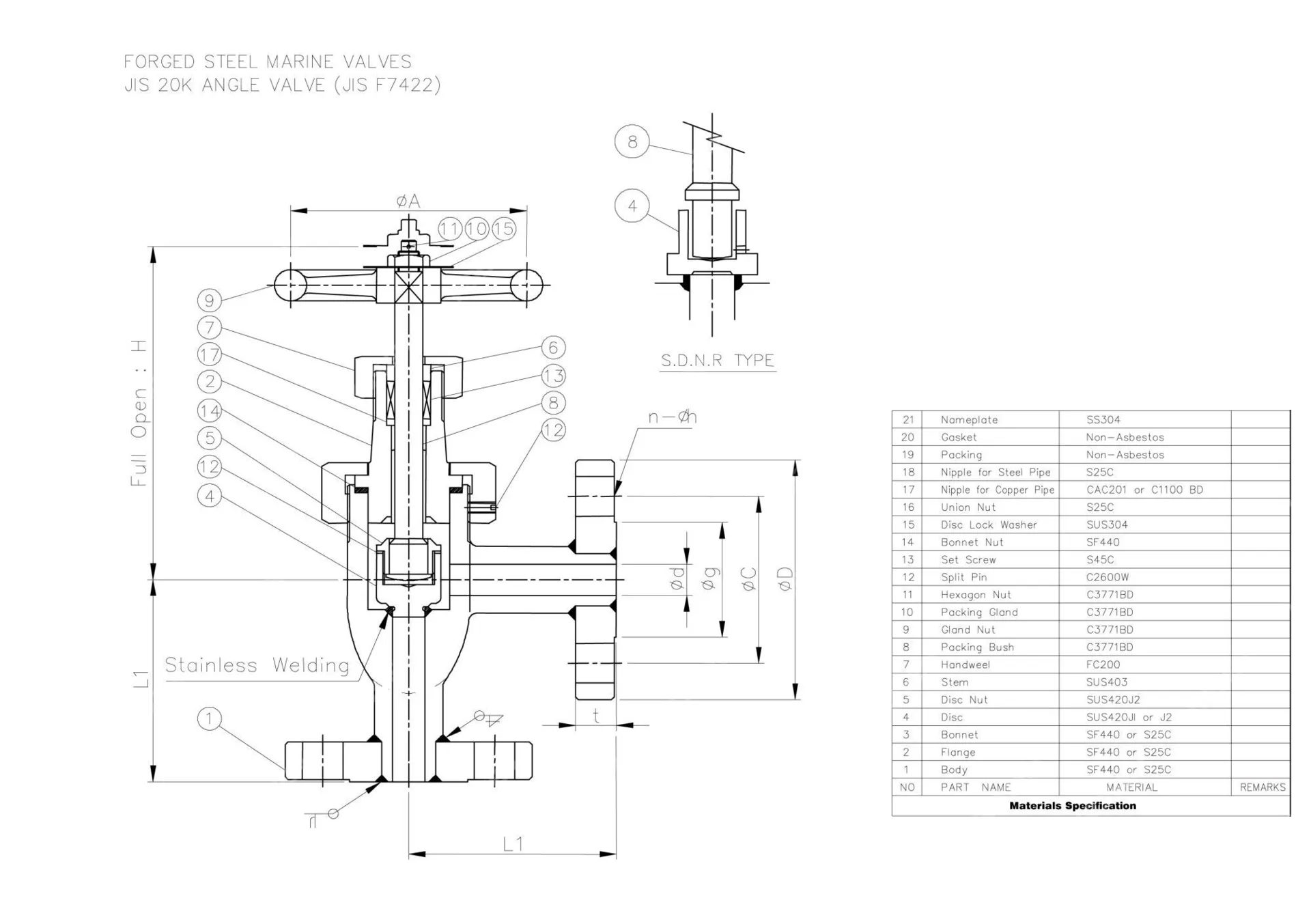

Marine Angle Globe Valve Technical Drawing
