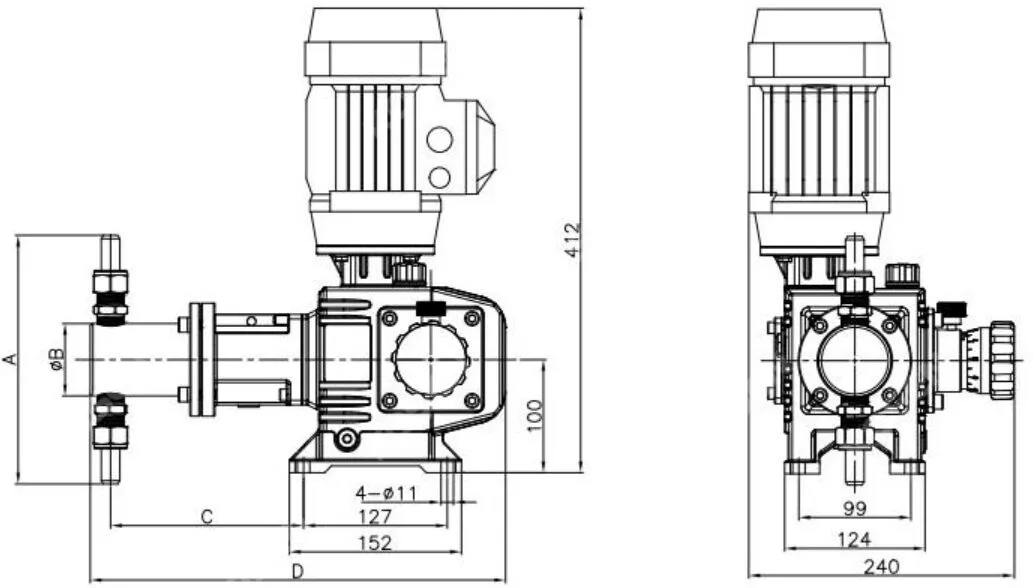

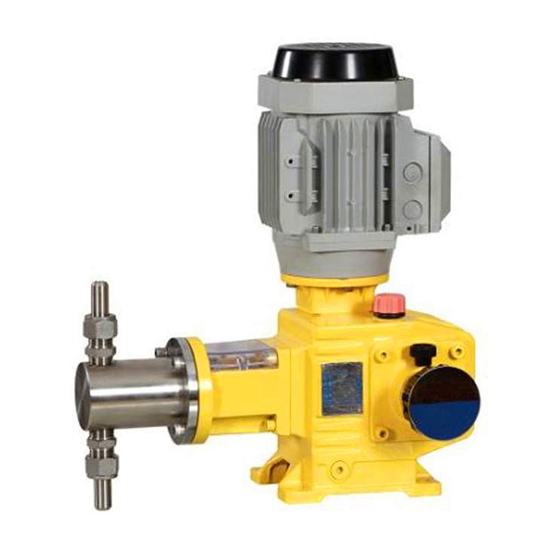

Precision Plunger Metering Pump, 25-500 LPH, SS 304/316, PVC

Key Specifications / Features

The Precision Plunger Metering Pump Plant offers pumps with a flow range of 25-500 LPH at 50Hz, operating under pressures of 5-10 bars and a suction lift of 1.5 meters. Featuring pump heads made of PVC, PTFE, SS 304, and SS 316, and a cast iron pump case, these pumps are designed for accurate, reliable fluid metering in various industrial applications.

Materials

Pump Head Material: PVC, PTFE, SS 304, SS 316
Pump Case Material: Cast Iron
Plunger: Ceramic or SS 316 Coated with Ceramic
Packing Seal: PTFE and SS 316 Ring
Diaphragm: Composite PTFE diaphragm
Check Valve: PVC, PTFE, SS 304, SS 316 (same as pump head selection)
Valve ball: Ceramic, SS 304, SS 316

Power Supply

380V 3 phase on standard, single phase or other voltage on request; EX-proof motor is available on request.

Plunger Metering Pump Description

The Precision Plunger Metering Pump is engineered for precise flow control and high-pressure dosing, capable of handling pressures up to 50 MPa. Featuring a liquid end with a ceramic coating on an SS 316 piston, it ensures durability and resistance to wear. The plunger packing seal is made from PTFE and compressed by an SS316 gland ring, providing a secure, high-pressure seal with minimal leakage for extended service life. This pump can be mounted both vertically and horizontally using the JSX motor. It also offers multiplex gearboxes, allowing one motor to drive multiple pumps, with a robust pump base for stable operation. Ideal for use in industries such as petroleum, chemical, electric power, metallurgy, mining, shipbuilding, light industry, agriculture, and defense, this pump offers reliable and efficient performance in demanding applications.
