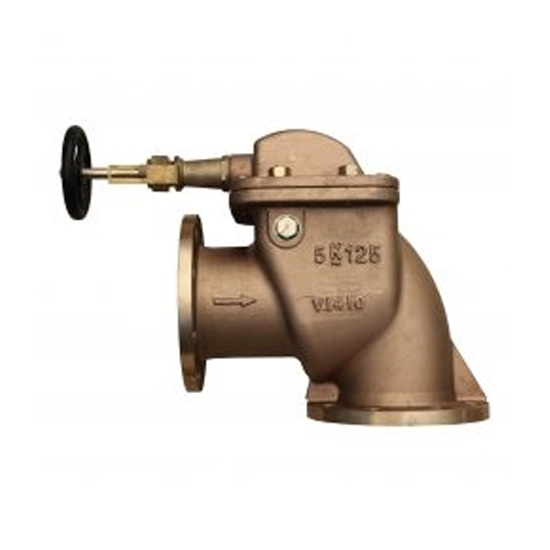

JIS F3060 Angle Storm Valve, Bronze, 5K, 125A, 5 Inch, FF

Key Specifications / Features

The JIS F3060 Angle Storm Valve is built with a durable bronze body and features a 5-inch (JIS 125A) size, rated for JIS 5K pressure. It has FF flanged ends for secure installation. This valve is specifically designed to control water pressure and adjust water flow in stormwater and other fluid management systems.

The Angle Storm Valve is designed to control water pressure and adjust water flow in various fluid systems. It is suitable for applications involving sea water, fresh water, oil, and other fluids. The valve is constructed from durable materials and can handle a wide range of operating conditions, making it ideal for industrial, marine, and utility sectors.

Technical Specifications

» Port Size: JIS 50A-150A (2-6 Inch)
» Pressure: JIS 5K, JIS 10K
» Temperature Range: -29°C to 150°C
» Body Material: Carbon Steel, Bronze
» Connection Type: FF Flange
» Medium: Sea Water, Fresh Water, Oil, etc.
» Structure: Designed for controlling water pressure and adjusting flow rates.

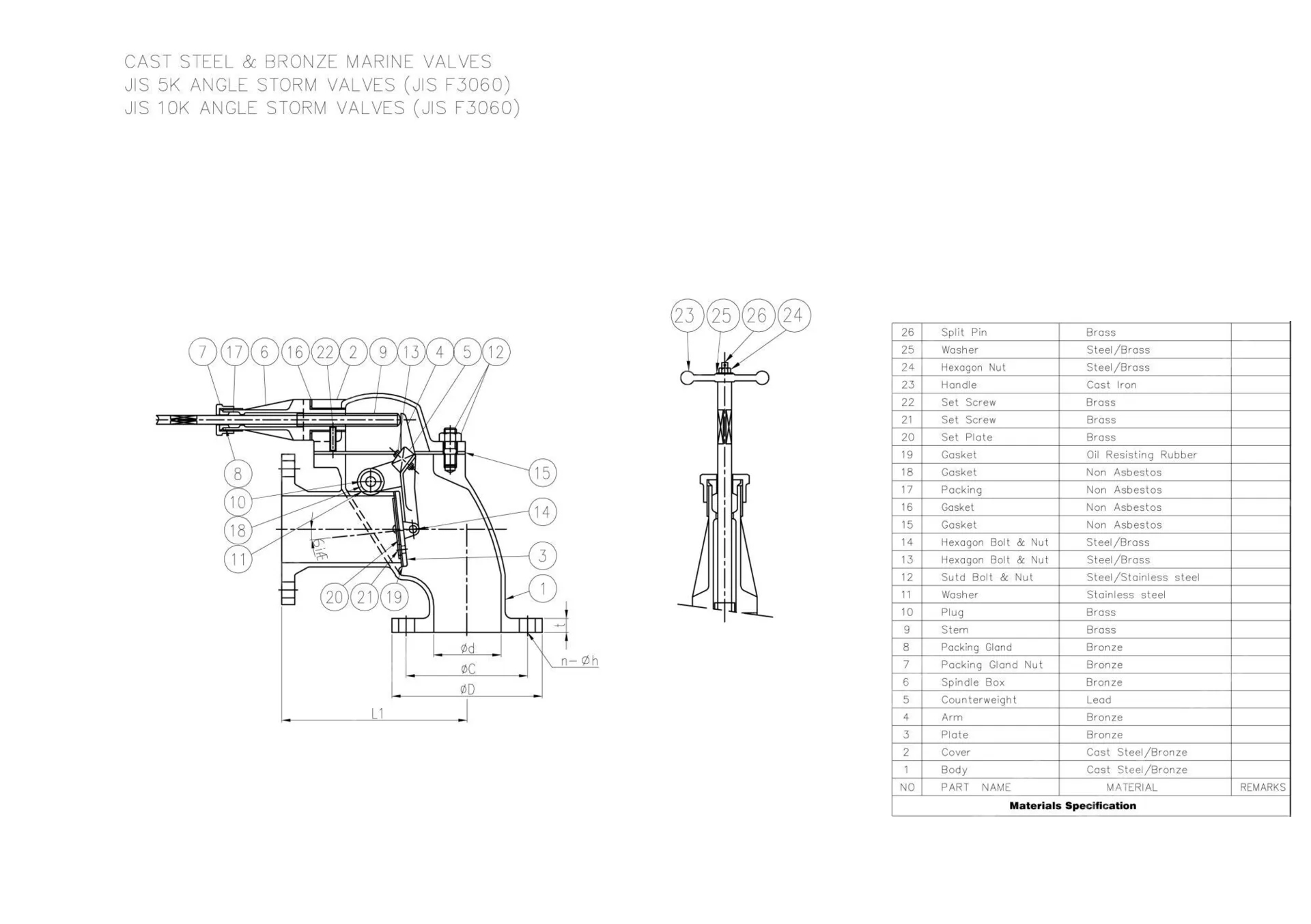

Materials of Main Parts
