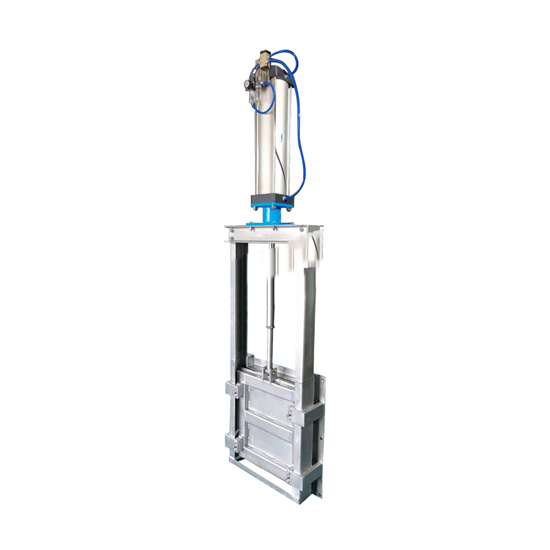

Pneumatic Square Slide Gate Valve, Carbon, Stainless Steel
- Product Name:
- Square Type Pneumatic Slide Gate Valve
- Body Material:
- Carbon, Stainless Steel, ASTM A216 WCB, Q235A, SS 304, SS 316, SS 304L, SS 316L
- Size Range:
- 200×200 mm to 930×930 mm, DN200-DN930
- Applicable temperature:
- -10°C to +200°C
- Seal Type:
- Hard Seal, Soft Seal
- Accessories:
- Mounting Flange, Solenoid Valve, Air Filter, Travel Switch
- Connection Flange Standard:
- GB/T 9113, JB/T 79
- Air Source Pressure:
- 0.4 to 0.6 MPa
Key Specifications / Features
The Square Type Pneumatic Slide Gate Valve is available in sizes ranging from DN200 to DN930. Constructed from durable materials including Carbon Steel, Stainless Steel, ASTM A216 WCB, Q235A, and SS 304/SS 316/SS 304L/SS 316L, it ensures high performance and corrosion resistance. The valve features both hard and soft seal options, providing reliable sealing for different operational needs.
Slide Gate Valves are fully constructed from either carbon steel or stainless steel, ensuring secure material interception and excellent durability. These valves are designed to meet the demands of handling abrasive materials such as sand, gravel, coal, or whole grain in heavy-duty applications. Ideal for gravity-fed systems, Slide Gate Valves are available in larger sizes and feature two replaceable, abrasion-resistant seals. The valves come in various configurations to suit different needs. They are known for their reliable, long-term performance in environments where traditional carbon steel slide gates are prone to corrosion. Unlike traditional roller-supported slide gates, which may have ledges where material can accumulate, Slide Gate Valves are designed without ledges, minimizing material cross-contamination and spoilage.
Product Application
Pneumatic Slide Gate Valves are used in heavy-duty applications where the interception of gravity-fed material flow is required. Commonly mounted on outlets of hoppers, tanks, silos, or mechanical conveyors, or on the inlets of loading spouts, these valves are versatile and suitable for nearly all industrial sectors, including the food industry.
Technical Specifications
» Constructed with carbon steel or stainless steel valve frame and blade
» Limited number of components for easy maintenance
» Painted carbon steel frame to prevent rusting
» Sizes available up to 1,000 x 1,000 mm (3.3 x 3.3 ft)
» Interchangeable actuators: manual, pneumatic, or electric gear motor
» Service inlet designed to deflect material away from seals and rollers, reducing wear
» Quick and easy maintenance
