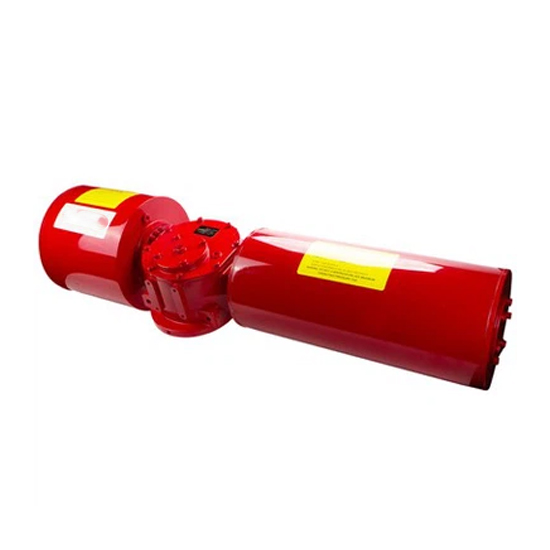

Scotch Yoke Pneumatic Actuator, Carbon Steel, 2043–120703 Nm
- Product Name:
- Single Acting Heavy Duty Scotch Yoke Pneumatic Actuator
- Type:
- Fluid Power Actuator
- Operation:
- Single Acting, Double Acting
- Materials:
- Carbon Steel
- Standard:
- -20°C to +80°C
- Torque Range:
- 2,043 Nm – 120,703 Nm
- Subtype:
- Pneumatic Actuator – Scotch Yoke
- Rotation Angle:
- 0° – 90°
- Double Acting Torque:
- 600 Nm – 260,000 Nm
- Spring Return Torque:
- 600 Nm – 100,000 Nm
- Pneumatic Drive:
- 0.3–0.7 MPa
- Hydraulic Drive:
- 20 MPa
- High Temperature:
- -15°C to +150°C
- Low Temperature:
- -40°C to +80°C
Key Specifications / Features
The Scotch Yoke Pneumatic Actuator, made from durable carbon steel, is designed for reliable and efficient valve operation. Available in both single and double-acting configurations, it offers a torque range from 2043 to 120703 Nm, ensuring versatility for various applications. With a stroke range of 0° to 90° and operating pressures between 0.3 to 0.7 MPa for pneumatic drive, this actuator is ideal for industries requiring precise and consistent valve control.
The Scotch Yoke Pneumatic Actuator is a pinnacle of precision engineering and robust design for automated flow control. Made with high-quality materials and advanced sealing technologies, these actuators are built to endure the most demanding industrial environments. From the dynamic and hazardous conditions of the petrochemical industry to the demanding operations of wastewater treatment, these actuators provide consistent performance, reliability, and durability. Their design makes them suitable for a variety of flow control applications, ensuring seamless operation in the toughest conditions.
An Excellent Choice for Ball and Butterfly Valves
» Ball Valves: Known for their tight seals and ability to handle high pressure and temperature conditions, ball valves are a perfect match for Scotch Yoke pneumatic actuators. While manual operation of these valves can be challenging, especially in large pipelines, the actuator’s ability to efficiently handle high torque simplifies valve control.
» Butterfly Valves: Commonly used in low-pressure settings such as water treatment and HVAC systems, butterfly valves regulate flow with a rotating disc. Although manual operation can be strenuous in larger pipe sizes, Scotch Yoke actuators handle the high torque requirements, ensuring smooth and efficient operation.
