ASTM A351 CF8M Y Strainer, ASME B16.34, 6 Inch, 150 LB, RF
- Product Name:
- Cast Steel ASTM A351 CF8M Y Strainer
- Design Standard:
- ASME B16.34, API 6D
- Body Material:
- ASTM A351 CF8M
- Size:
- 6 Inch
- Pressure:
- Class 150 LB
- End Connection:
- RF
Key Specifications / Features
This ASTM A351 CF8M Y Strainer, manufactured with a cast stainless steel body, is designed to meet ASME B16.34 and API 6D standards. With a 4-inch (DN100) size and a pressure rating of Class 150 LB and PN20, it ensures reliable performance in medium-pressure applications. The valve features RF ends for easy installation and efficient flow management.
Y-type strainers are essential high-efficiency filtration equipment in purification engineering, playing a crucial role in the treatment of both domestic and industrial wastewater. With numerous design and application advantages, Y-type strainers are highly regarded across various industries. They have effectively processed large volumes of wastewater, allowing valuable water resources to be reused and significantly contributing to water conservation.
Key operational benefits of Y-type strainers include full automation, maintenance-free operation, large filtration areas, high filtration efficiency, long service life, corrosion-resistant stainless steel construction, customizable filtration accuracy, and a wide range of specifications. Compared to other filtration systems, Y-type strainers are one of the most efficient solutions available. The treated water meets national discharge standards and achieves the goal of water reuse, supporting sustainability and resource recovery.
Technical Specification
» Normal Size Range: 1/2-24 Inch (DN15-DN600)
» Normal Pressure Rating: PN16-PN420, Class 150-2500 LB
» Material: ASTM A216 WCB, A351 CF8, CF8M, CF3, CF3M, A352 LF2, A217 WC6, WC9
» Filtering Accuracy:
18-30 mesh for water filter
10-100 mesh for air filter
100-480 mesh for oil filter
» Temperature Range: -29°C to +425°C
» End Connections: RF, RTJ, BW
» Medium: Steam, high-temperature steam, gas, oil
Standards Compliance
» Design and Manufacture: ANSI B16.34, API 600, API 6D
» Face to Face (End to End): ANSI B16.10, API 6D
» Flanged Connection: 2-24 Inch to ANSI B16.5
» Test and Inspection: API 598, API 6D
» Butt Welded End: ANSI B16.5

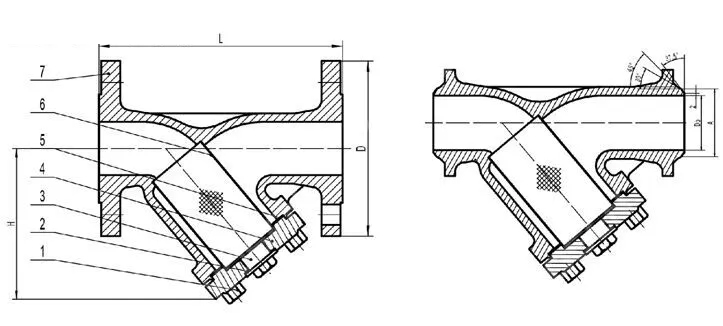

Material for Main Parts
| No | Name of Parts | Carbon Steel | Stainless Steel | Stainless Steel |
| 1 | Bolt | A193 B7 | A193 B8 | A193 B8M |
| 2 | Gasket | Copper Alloy | Copper Alloy | Copper Alloy |
| 3 | Drain plug | A105 | SS 304 | SS 316 |
| 4 | Bonnet | A216 WCB | A351 CF8 | A351 CF8M |
| 5 | Gasket | Graphite + SS | Graphite + SS | Graphite + SS |
| 6 | Screen | SS 304 | SS 304 | SS 316 |
| 7 | Body | A216 WCB | A351 CF8 | A351 CF8M |
