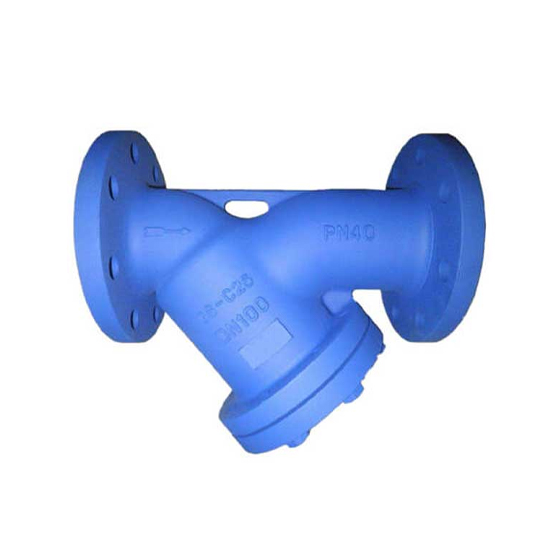

EN 1.0619 Y Strainer, DIN 3352, SS 304 Screen, DN100, PN40
- Product Name:
- EN 1.0619 Y Type Strainer
- Design Standard:
- DIN 3352
- Body Material:
- EN 1.0619
- Size:
- DN100
- Pressure:
- PN40
- End Connection:
- RF Flanged
- Screen Material:
- SS 304
Key Specifications / Features
The EN 1.0619 Y Strainer Factory in China produces high-quality Y strainers in compliance with DIN 3352 standards. These strainers feature a carbon steel body and a stainless steel SS 304 screen, ensuring durability and effective filtration. With a size of DN350 (14 inches) and a pressure rating of PN25 (Class 300 LB), they are suitable for various industrial applications. The strainers are equipped with RF (Raised Face) flanged ends for reliable connections.
Y-type strainers are essential high-efficiency filtration devices used in purification systems, playing a significant role in the treatment of both domestic and industrial wastewater. These strainers are highly valued for their design and functionality, offering several advantages in operation. They are effective in treating large volumes of wastewater, ensuring valuable water resources are reused, thus contributing to significant water conservation.
Key features include:
- Full automation with maintenance-free operation
- Large filtration area for high-efficiency filtration
- Long service life due to durable stainless steel construction
- Customizable filtration accuracy
- Wide range of specifications to meet various needs
Compared to other filtration equipment, Y-type strainers are among the most effective in engineering applications, ensuring treated water meets national discharge standards and is suitable for reuse.
Technical Specification
» Normal Size Range: DN15-DN600, 1/2-24 Inch
» Normal Pressure Rating: PN16-PN40
» Material: ASTM A216 WCB, A351 CF8, CF8M, CF3, CF3M, A350 LF2, A217 WC6, WC9
» Filtering Accuracy: 18-30 mesh for water filter, 10-100 mesh for air filter, 100-480 mesh for oil filter
» Temperature Range: -29°C to +425°C
» Ends Connections: RF, BW
» Medium: Steam, High-temperature Steam, Gas, Oil
Standards Compliance
» Design and Manufacture: DIN 3352, DIN 3840
» Face to Face (end to end): EN 558-1
» Flanged Connection: EN 1092-B1
» Test and Inspection: EN 12266
» Butt Welded End: EN 12627, DIN 3239

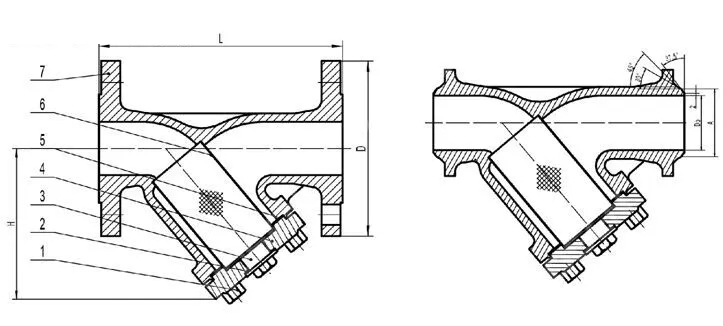

Main Dimensions
| No | Name of Parts | Carbon Steel | Stainless Steel | Stainless Steel |
| 1 | Bolt | A193 B7 | A193 B8 | A193 B8M |
| 2 | Gasket | Copper Alloy | Copper Alloy | Copper Alloy |
| 3 | Drain plug | A105 | SS 304 | SS 316 |
| 4 | Bonnet | A216 WCB | A351 CF8 | A351 CF8M |
| 5 | Gasket | Graphite + SS | Graphite + SS | Graphite + SS |
| 6 | Screen | SS 304 | SS 304 | SS 316 |
| 7 | Body | A216 WCB | A351 CF8 | A351 CF8M |
