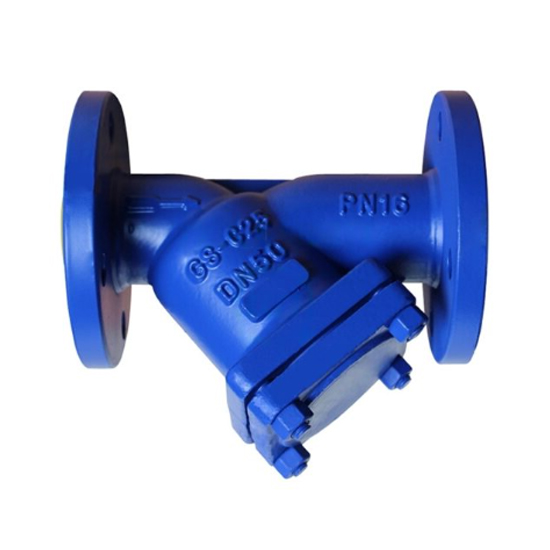

GS-C25 Y Type Strainer, DIN 3352, SS 304 Screen, DN50, PN16

Key Specifications / Features

The GS-C25 Y Type Strainer Supplier offers a high-quality strainer designed in accordance with DIN 3352 standards. This strainer features a cast carbon steel body and a stainless steel (SS 304) screen, ensuring durability and effective filtration. With a DN50 (2 inch) diameter and a pressure rating of PN40 (Class 300 LB), it is suitable for a wide range of industrial applications. The RF (Raised Face) flanged ends facilitate secure and easy installation, making this strainer a reliable choice for maintaining fluid purity in various systems.

As an essential high-efficiency filtration device in purification engineering, Y-type strainers have made significant contributions to the treatment of both domestic and industrial wastewater. Their versatile design and numerous applications have made them highly popular. Y-type strainers have effectively processed vast quantities of wastewater across various industries, facilitating the reuse of valuable water resources and conserving a substantial amount of water. The operational advantages of Y-type strainers include full automation, maintenance-free operation, a large filtration area, high filtration efficiency, long service life, stainless steel construction, adjustable filtration precision, and a comprehensive range of specifications. Compared to other filtration systems, Y-type strainers are among the most effective in engineering. The water quality after treatment not only meets national discharge standards but also achieves the goals of reuse and recycling.

Technical Specification

» Normal Size Range: DN15-DN600
» Normal Pressure Rating: PN16-PN40
» Material: ASTM A216 WCB, A351 CF8, CF8M, CF3, CF3M, A350 LF2, A217 WC6, WC9
» Filtering Accuracy: 18-30 mesh for water filter, 10-100 mesh for air filter, 100-480 mesh for oil filter
» Temperature Range: -29°C to +425°C
» Ends Connections: RF, BW
» Medium: Steam, High-temperature Steam, Gas, Oil

Standards Compliance

» Design and Manufacture: DIN 3352, DIN 3840
» Face to Face (end to end): EN 558-1
» Flanged Connection: EN 1092-B1
» Test and Inspection: EN 12266
» Butt Welded End: EN 12627, DIN 3239

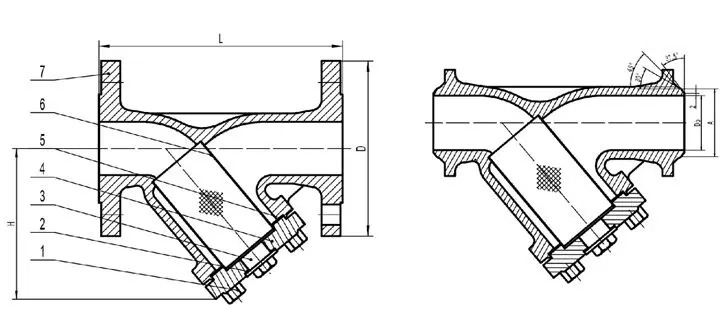

Structural Diagram

Material for Main Parts
