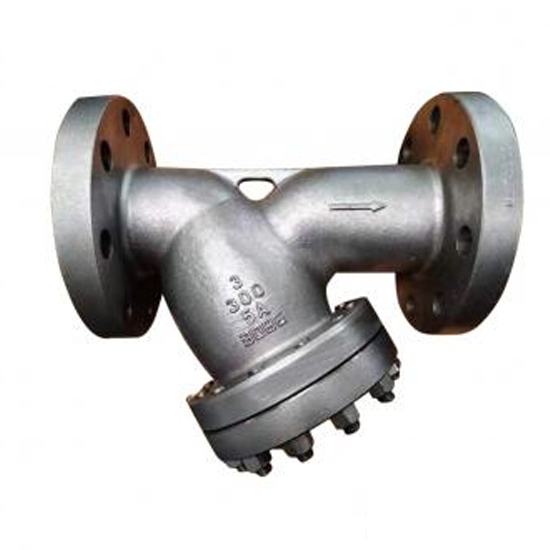

High Pressure Y Strainer, ASME B16.34, WCB, 3 Inch, 300 LB
- Product Name:
- High Pressure Y Strainer
- Design Standard:
- ASME B16.34
- Body Material:
- ASTM A216 WCB
- Size:
- 3 Inch
- Pressure:
- Class 300 LB
- End Connection:
- RTJ Flanged
- Screen Material:
- SS 304
Key Specifications / Features
The High Pressure Y Strainer, manufactured in China, features an ASTM A216 WCB body and SS 304 screen for superior durability and corrosion resistance. Designed to ASME B16.34 standards, it is rated 4 inches (DN100), Class 1500 LB, PN250, with RTJ flanged ends for secure connections. This strainer efficiently filters debris in high-pressure systems, ensuring reliable performance and flow protection.
The Y-type strainer is a crucial high-efficiency filtration component in purification engineering, playing a significant role in the treatment of both domestic and industrial wastewater. These strainers are widely appreciated for their design and operational advantages, making them indispensable in wastewater treatment systems. By effectively filtering large volumes of wastewater, Y-type strainers facilitate the reuse of valuable water resources, contributing significantly to water conservation efforts.
Key benefits of Y-type strainers include fully automated operation, maintenance-free performance, a large filtration area, high filtration efficiency, long service life, and the use of stainless steel materials. They offer optional filtration accuracy and come in a wide range of specifications. Compared to other filtration equipment, Y-type strainers are among the most efficient solutions in industrial applications. The treated water meets national discharge standards, ensuring safe reuse and minimizing environmental impact.
Technical Specifications
» Size Range: 1/2-24 Inch (DN15 to DN600)
» Pressure Rating: PN16-PN420, Class 150-2500 LB
» Materials: ASTM A216 WCB, A351 CF8, CF8M, CF3, CF3M, A350 LF2, A217 WC6, WC9
» Filtration Accuracy:
Water filter: 18 to 30 mesh
Air filter: 10 to 100 mesh
Oil filter: 100 to 480 mesh
» Temperature Range: -29°C to 425°C
» End Connections: RF, RTJ, BW
» Medium: Steam, high-temperature steam, gas, oil
Standards Compliance
» Design and Manufacture: ANSI B16.34, API 6D
» Face to Face (End to End): ANSI B16.10, API 6D
» Flanged Connection: 2-24 Inch to ANSI B16.5
» Test and Inspection: API 598, API 6D
» Butt Welded End: ANSI B16.5

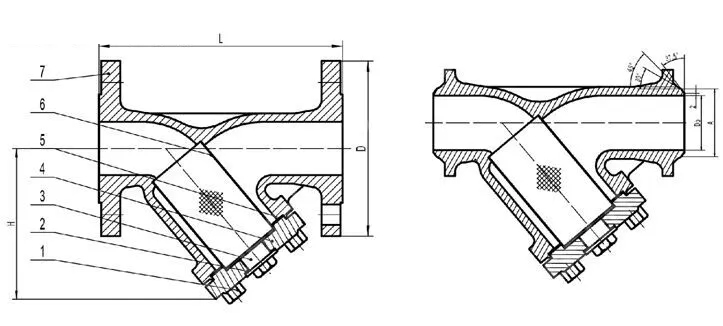

Material for Main Parts
| No | Name of Parts | Carbon steel | Stainless steel | Stainless steel |
| 1 | Bolt | A193 B7 | A193 B8 | A193 B8M |
| 2 | Gasket | Copper Alloy | Copper Alloy | Copper Alloy |
| 3 | Drain plug | A105 | SS 304 | SS 316 |
| 4 | Bonnet | A216 WCB | A351 CF8 | A351 CF8M |
| 5 | Gasket | Graphite+SS | Graphite+SS | Graphite+SS |
| 6 | Screen | SS 304 | SS 304 | SS 316 |
| 7 | Body | A216 WCB | A351 CF8 | A351 CF8M |
