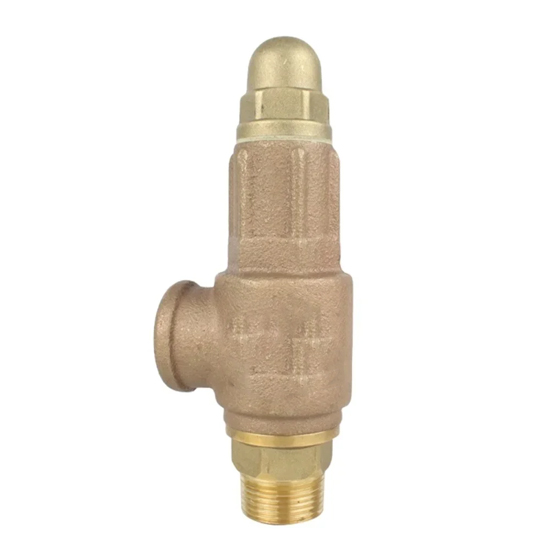

Adjustable Safety Valve, ASTM B62 C83600, DN25, 1 Inch, PN10
- Product Name:
- Adjustable Safety Valve
- Body Material:
- ASTM B62 C83600, Leaded Red Brass
- Size:
- DN25, 1 Inch
- Pressure:
- PN10, Class 150 LB
- End Connection:
- Threaded
- Medium:
- Steam, Water, Oil, etc
Key Specifications / Features
The China Adjustable Safety Valve Supplier offers a high-quality safety valve with a body made of leaded red brass (ASTM B62 C83600). This valve has a DN25 (1 inch) size and is rated for a pressure of PN10 and Class 150 LB. It features threaded ends for easy installation and is designed for reliable overpressure protection in various industrial applications, including steam, water, and oil systems.
Adjustable safety valves are widely used in various systems, including steam systems, boilers, oil systems, water systems, air systems, and more. Once installed in the piping system, the safety valve will automatically activate when the pressure of the medium reaches the set value. It then releases excess pressure to protect the system.
Technical Specification
» Product model: S10S
» Normal Size Range: 1/2-2 Inch
» Normal Pressure Rating: PN10
» Operating pressure: 0.1-40 bar
» Materials: Bronze ASTM B62 C83600
» Ends Connections: BSP Thread, NPT Thread

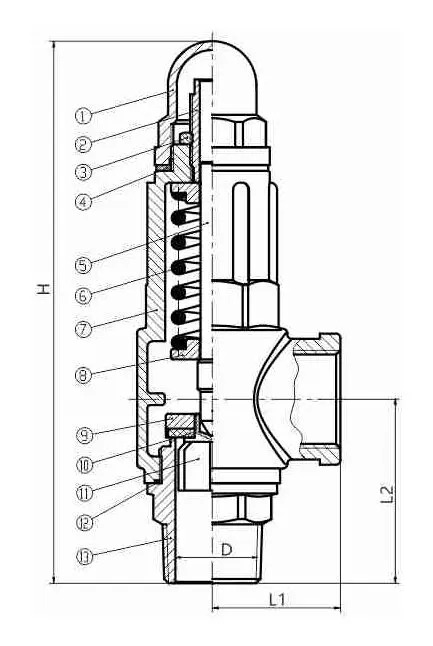

Structural Diagram
Main Parts and Materials
| No | Name of Parts | Materials |
| 1 | Cap | CW617N |
| 2 | Adjust Screw | SS 304 |
| 3 | Nut | SS 304 |
| 4 | Gasket Ring | PTFE |
| 5 | Stem | SS 304 |
| 6 | Spring | SS 304 |
| 7 | Body | Bronze ASTM B62 C83600 |
| 8 | Spring Seat | SS 304 |
| 9 | Disc | SS 304 |
| 10 | Gasket | PTFE,FKM,EPDM,RPTFE |
| 11 | Buffer | CW617N |
| 12 | Gasket Ring | PTFE |
| 13 | Seat | SS 304 |
Main Dimensions
| Inlet | D | Outlet | Lift | L1 | L2 | H |
| 1/2 Inch | 13 | 1/2 Inch | 0.5 | 31 | 48 | 136 |
| 3/4 Inch | 19 | 3/4 Inch | 0.7 | 35 | 55 | 145 |
| 1 Inch | 25 | 1 Inch | 0.9 | 39.5 | 65 | 175 |
| 1-1/4 Inch | 31.5 | 1-1/4 Inch | 1.2 | 50.5 | 75 | 197 |
| 1-1/2 Inch | 37 | 1-1/2 Inch | 1.3 | 59 | 86 | 224 |
| 2 Inch | 47 | 2 Inch | 1.6 | 67 | 100 | 257 |
