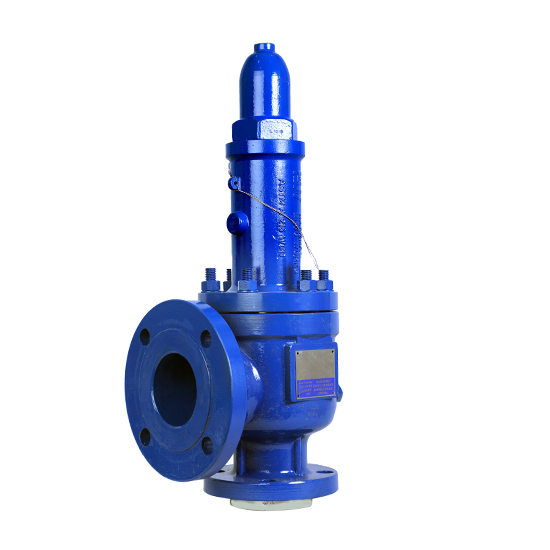

API 526 Full Lift Safety Valve, A216 WCB, 2 Inch, CL 150 LB

Key Specifications / Features

The Carbon Steel Full Lift Safety Valve, manufactured according to API 526 standards, features an ASTM A216 WCB body for strength and durability. With a 2-inch (DN50) size, PN16, and Class 150 LB pressure rating, it provides reliable overpressure protection. The valve is equipped with RF flanged ends for secure connections.

The Spring Full Lift Safety Valve is designed for systems where the discharge is relatively simple, and the pressure may range from atmospheric to a maximum of 10% of the set pressure. It is ideal for applications with small discharge capacities, large back pressures, and stable system pressures. The valve’s sealing surface is available in two designs: flat and conical surfaces. The discharge area is calculated based on the cylindrical or conical surface formed between the valve disc and valve seat. For systems with constant back pressure, the valve should be set at the differential pressure.

Technical Specifications

» Normal Size Range: 3/4-8 Inch (DN20-DN200)
» Normal Pressure Rating: Class 150-600 LB (PN10-PN100)
» Design and Manufacture: GB/T 12243-1989, API RP 520, 521, API 526, API 527
» Face to Face (End to End): GB/T 14087, JB/T 6441, JB/T 2203, JB/T 9624, JB/T 53170
» Flanged Connection: ASME B16.5, DIN 2543 to 2545, EN 12627
» Test and Inspection: API 598, DIN 3230, MSS SP-117
» Materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex or Other Specials
» Ends Connections: Flanged (FF, RF, RTJ) to international standards
» Working Medium: Gas, liquid, and steam

Product Features

» Lighter and Compact Construction: Designed for space and weight savings, the valve is smaller and lighter, aligning with current industry trends.
» Interchangeable Parts: The valve can be modified from type to type (gas, liquid, conventional, bellows) by changing only a few parts.
» Simplified Maintenance: The reduced number of parts makes the valve easier to maintain and more cost-effective.
» Material Selection: A wide range of materials are available, including non-ferrous for low-temperature and oxygen service, as well as exotic alloys for chemical and process industries.

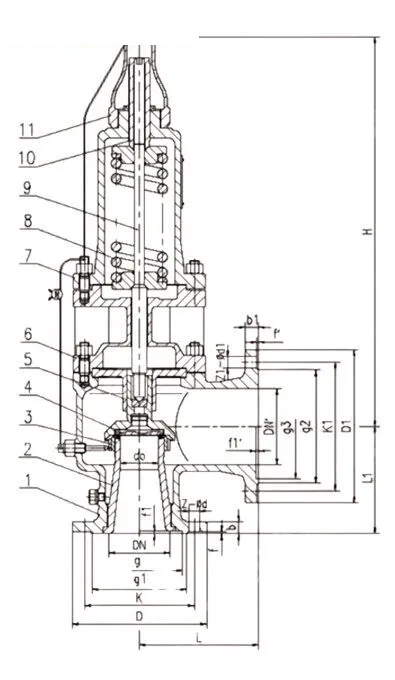

Main Parts and Materials
