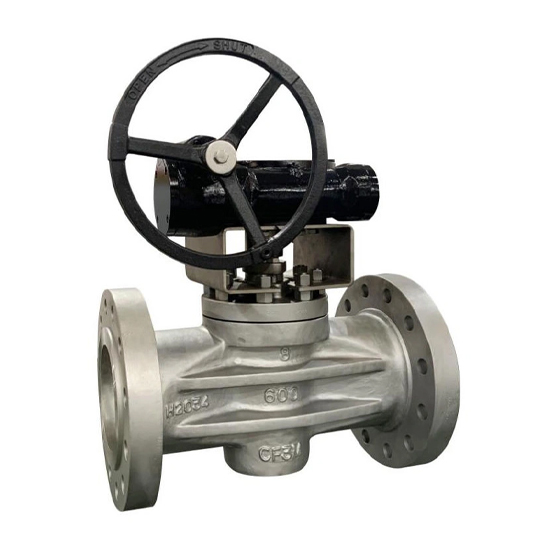

SS 904L Sleeved Plug Valve, API 6D, API 599, 8 IN, CL600, RF

Key Specifications / Features

The SS 904L Sleeved Plug Valve is a soft-sealed, high-performance valve designed to meet API 6D and API 599 standards. Constructed from SS 904L, this 6-inch, DN150 valve is rated for Class 300 LB and PN50 pressure. It features RF flanged ends for secure connections and is operated using a handwheel for precise control.

The unique 360-degree metal lip protection fixed card ensures that the valve has no cavity to accumulate the medium. The metal lip in the rotary plug provides a self-cleaning effect, making it suitable for sticky and scaling-prone working conditions. The valve supports two-way flow, offering more convenient installation. Sleeve-type soft sealing plug valves are commonly used in corrosive, highly toxic, and hazardous media environments where leakage is strictly prohibited or where the valve material must not contaminate the medium. The body material can be carbon steel, alloy steel, or stainless steel, depending on the working medium.

Technical Specifications

» Nominal Diameter: NPS 1/2-14 Inch (DN15-DN350)
» Design Pressure: Class 150-900 LB (PN20-PN160)
» Material:
   ASTM A216 WCB, WCC
   ASTM A352 LCB, LCC
   ASTM A351 CF8, CF8M, CF3M, CF8C, CN3MN, CN7M
   ASTM A890 4A (CD3MN), 5A (CE3MN), 6A (CD3MWCuN)
   ASTM B148 C95800, C95500
» Design Temperature: -46°C to +120°C
» Medium: Water, gas, oil, etc.
» Design Standard: API 6D, API 599
» Face to Face: ASME B16.10
» Connection End: RF, RTJ, BW
» Test Standard: API 598, ISO 5208
» Operation: Lever, worm gear, electric, pneumatic
» Applications: Petrochemical, chemical, natural gas, LPG, HVAC, food, and pharmaceuticals
» Basic Functions
   Function 1: Optional bore patterns: Venturi, Regular, Short, Standard
   Function 2: Metal-to-metal seated design
   Function 3: Injection grease-sealed design (for stem and seats)
   Function 4: Fire-safe design
   Function 5: Integral seat ring

Material for Main Parts
