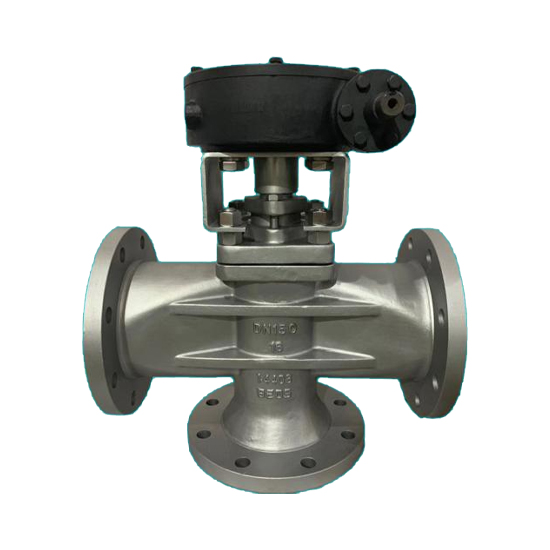

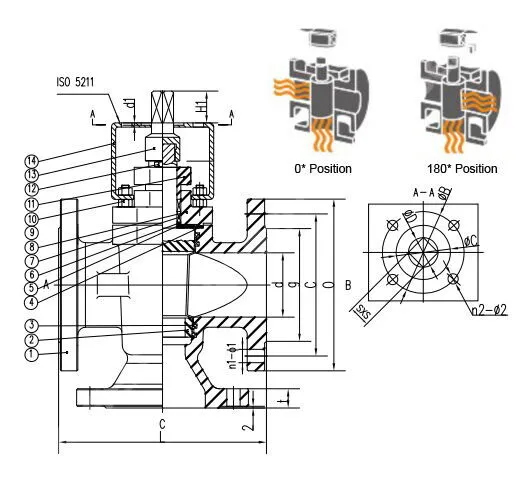

Three Way Sleeved Plug Valve, API 6D, EN 1.4408, DN150, PN16

Key Specifications / Features

The Three-Way Sleeved Plug Valve, manufactured according to API 6D or API 599 standards, features an EN 1.4408 cast stainless steel body for superior corrosion resistance and durability. With a 6-inch (DN150) size, PN16 (Class 150 LB) pressure rating, and RF (Raised Face) flanged ends, this valve is designed for reliable fluid control in complex systems. The sleeved plug design ensures leak-tight operation.

Multi-Port Plug Valves are widely used in oilfield mining, transportation, and scouring equipment. These valves are designed for use in harsh environments, such as those involving corrosive, toxic, or hazardous media, where leakage is strictly prohibited and valve materials must not contaminate the medium. The valve body can be made from carbon steel, alloy steel, or stainless steel, depending on the working medium.

The 3-way plug valve operates by rotating the handwheel a quarter turn, which causes the valve plug to align its port with the valve port. This allows the fluid to flow through the valve. To close the valve, the handwheel is rotated in the opposite direction, aligning the plug port perpendicular to the fluid flow path, thereby blocking the fluid from passing through.

Technical Specifications

» Nominal Diameter: NPS 1/2-14 Inch (DN15-DN350)
» Design Pressure: Class 150-900 LB (PN20-PN160)
» Materials:
   ASTM A216 WCB, WCC
   ASTM A352 LCB, LCC
   ASTM A351 CF8, CF8M, CF3M, CF8C, CN3MN, CN7M
   ASTM A890 4A (CD3MN), 5A (CE3MN), 6A (CD3MWCuN)
   ASTM B148 C95800, C95500
» Design Temperature: -46°C to +120°C
» Medium: Water, gas, oil, etc.
» Design Standard: API 6D, API 599
» Face to Face: ASME B16.10
» Connection End: RF, RTJ, BW
» Test Standard: API 598, ISO 5208
» Operation: Lever, worm gear, electric, pneumatic
» Applications: Petrochemical, chemical, natural gas, LPG, HVAC, food, and pharmaceuticals
» Key Functions
   Function 1: Optional bore patterns: Venturi, Regular, Short, Standard
   Function 2: Metal-to-metal seated design
   Function 3: Injection grease-sealed design (for stem and seats)
   Function 4: Fire-safe design
   Function 5: Integral seat ring
