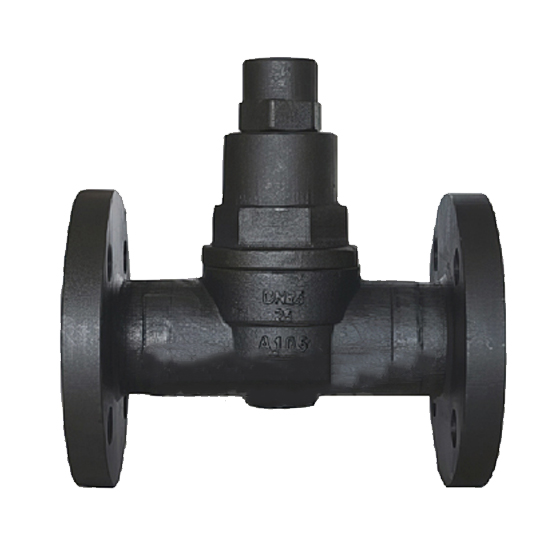

Carbon Steel Bimetallic Steam Trap, EN 26704, ASTM A105, DN15

Key Specifications / Features

The China Carbon Steel Steam Trap Plant offers high-quality bimetallic steam traps, specifically designed for efficient condensate removal. These traps are manufactured from forged carbon steel, ensuring durability and reliability. They comply with international standards such as EN 26704 and ASTM A105. Available in DN15 (1/2 inch) size with a pressure rating of PN25 and Class 300 LB, these traps feature flanged ends for easy installation and maintenance.

Bimetallic steam traps help conserve energy by discharging sub-cooled condensate in applications that can utilize its sensible heat. Among thermostatic steam traps, they are the most robust, with excellent resistance to water hammer and corrosive condensate, making them highly durable and reliable in demanding conditions.

Technical Specification

» Product model: CS47 Flange
» Normal Size Range: 1/2-1 Inch (DN15-DN25)
» Normal Pressure Rating: PN16,PN25,Class 150 LB
» Material: ASTM A216 WCB, A351 CF8, CF8M, CF3, CF3M
» Maximum Allowable Pressure (PMA): 40 Bar g
» Maximum Allowable Temperature (TMA): 300°C
» Maximum Differential Pressure (ΔPMX): 32 Bar
» Medium: Steam condensate
» Design and Manufacture: ISO 6552; EN 26704
» Face to face(end to end): EN 26554
» Test and inspection: EN 26948

Application

Bimetallic steam traps conserve energy by discharging sub-cooled condensate in applications that can utilize sensible heat. They are the most robust among all thermostatic steam traps, capable of withstanding water hammer and handling corrosive condensate, ensuring long-term durability and reliable performance.

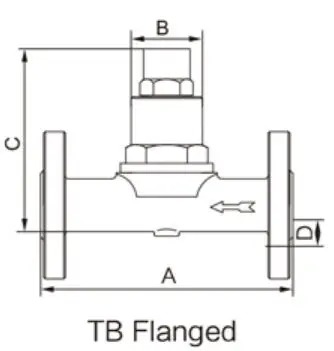

Structural Diagram

Main Dimensions
