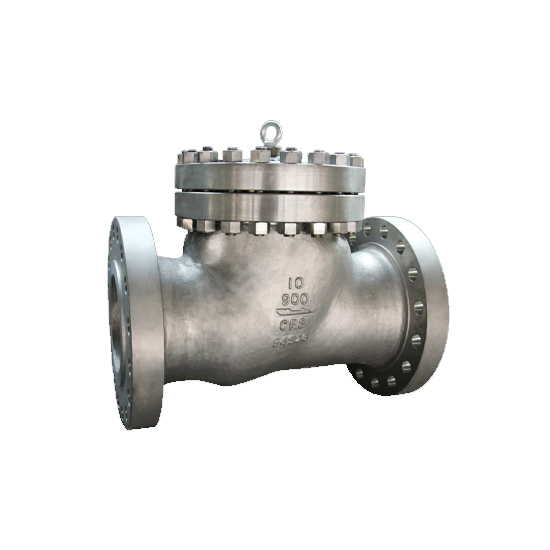

Bolted Bonnet Swing Check Valve, API 6D, CF8M, 10 IN, CL900

Key Specifications / Features

The Bolted Bonnet Swing Check Valve Plant produces high-quality swing check valves in compliance with API 6D standards. These valves feature a stainless steel body made from ASTM A351 CF8M, ensuring durability and corrosion resistance. Available in a large size of 16 inches (DN400), they operate at a pressure rating of Class 600 LB and PN100. The valves come with raised face (RF) flanged ends for reliable connections.

Universal Cast Steel Check Valves are designed and manufactured to international standards such as API 6D, BS 1868, and ASME B16.34. These valves minimize flow resistance and pressure drop, making them suitable for horizontal installation only. The lapped and screwed-in seat ring ensures a tight shut-off and long service life. The valve disc is precisely engineered for automatic shut-off at zero pressure. Featuring a compact structure and low-emission service, swing check valves have a bolted cover and a free-swinging clapper that responds to flow conditions. For heavier disc weights, dampers or counterweights can be added to prevent chattering.

Technical Specifications

» Nominal Diameter: NPS 2–24 Inch (DN50–DN600)
» Design Pressure: Class 150–2500 LB (PN10–PN420)
» Materials: ASTM A216 WCB, WCC, A217 WC6, WC9, C5, C12A, A352 LCB, LCC, A351 CF8, CF8M, CF3, CF3M, CF8C
» End Connections: Flanged (FF, RF, RTJ) to international standards
» Design and Manufacture Standards: BS 1868, API 6D, DIN 3352
» Face-to-Face (End-to-End): ANSI B16.10, EN 558 Series
» Flanged Connections: ASME B16.5, ASME B16.47, EN 1092 Series
» Butt Welded End: ANSI B16.25
» Test and Inspection Standards: API 598, ISO 5208, EN 12266-1
» Temperature Range: -29°C to 595°C
» Medium: Water, gas, oil, etc.

Product Features

» Designed to prevent backflow with minimal pressure drop, allowing straight-line flow through the valve.
» The disc swings open with media flow and closes with back pressure to ensure proper sealing.
» Suitable for horizontal or vertical installation, following the marked flow direction.
» Available with optional accessories such as bypasses, locking devices, and counterweights to meet specific customer requirements.
