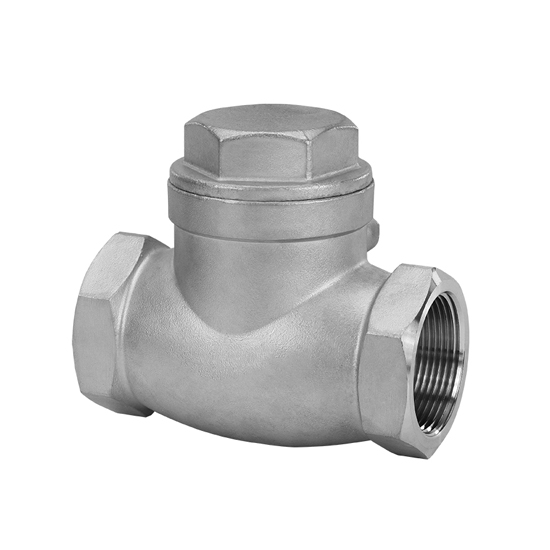

ASTM A351 CF8 Swing Check Valve, DN15, PN16, 1/2 Inch, BSPT

Key Specifications / Features

The ASTM A351 CF8 Swing Check Valve features an investment-cast stainless steel body, ensuring superior strength and corrosion resistance. With a compact DN15 (1/2 inch) size and a pressure rating of PN16 (Class 150 LB), this valve is designed for reliable flow control in low-pressure systems. It comes with RC threaded (BSPT) ends for secure and easy installation.

Investment Casting Screwed Check Valves are designed to prevent backflow in pipelines. The valve allows flow in a straight line, resulting in minimal pressure drop. As the media flows through the valve, the disc swings into the open position, while back pressure in the line keeps the disc closed. These valves can be installed in both horizontal and vertical pipelines but must be oriented according to the flow direction arrow marked on the body to ensure proper function.

Technical Specification

» Type: Investment Casting Screwed Check Valve
» Normal Size Range: 1/2-2 Inch (DN15-DN50)
» Normal Pressure Rating: 200 PSI, PN16
» Material: ASTM A351 CF8, CF8M, CF3, CF3M
» Temperature Range: -29°C to 180°C
» Threaded: BSPT, BSP (BS21), NPT (B1.20.1), DIN 2999/259
» Inspection Testing: API 598
» Construction: Investment casting body/bonnet, screwed cap, swing type disc, integral seat
» Medium: Water, gas, oil, etc.
