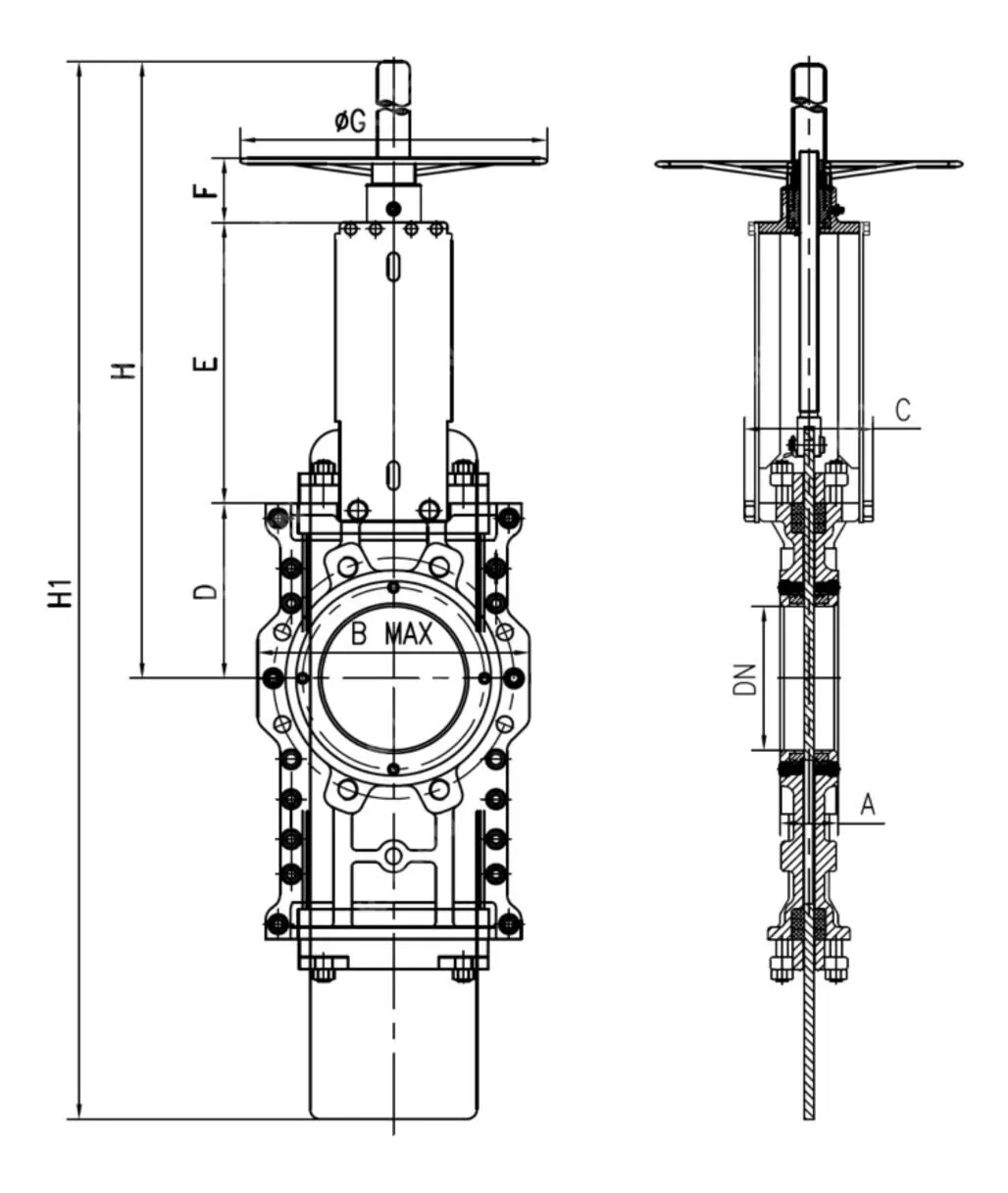

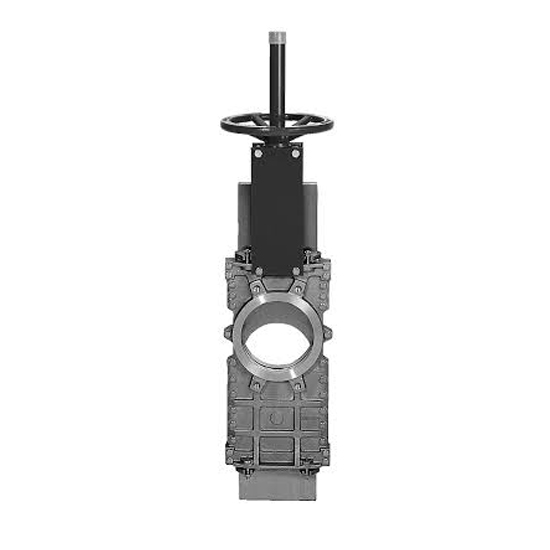

Through Conduit Knife Gate Valve, ASTM A351 CF8, DN100, PN10

Key Specifications / Features

The Through Conduit Knife Gate Valve is a robust and reliable solution for isolating or regulating flow. Featuring a split-body design and full port, it is constructed from ASTM A351 CF8 stainless steel for enhanced corrosion resistance. The PTFE seat ensures a secure and leak-free seal. With a 4-inch (DN100) size, it is rated for Class 150 LB (PN10) and equipped with wafer ends for easy installation.

The Through Conduit Knife Gate Valve is a bi-directional wafer knife gate valve designed primarily for highly concentrated flow media. Featuring a through-going O-port plate, this valve offers reliable and safe shut-off performance without the risk of clogging. Its double-seat design enables it to handle flow in both directions, ensuring versatility in a wide range of applications.

Technical Specifications

» Structure: Through Conduit Knife Gate Valve
» Nominal Diameter: NPS 2-24 Inch (DN50-DN600)
» Design Pressure: PN10, PN16, Class 150 LB
» Temperature Range: -29°C to 150°C
» Max Working Pressure:
DN50-DN250: 10 bar
DN300-DN450: 7 bar
DN500-DN600: 4 bar
» Body Material: ASTM A216 WCB, A351 CF8, CF8M, Special Alloys, etc.
» Seat Material: PTFE (up to 150°C)
» Flange Standard:
   GB/T 9113.1
   JB/T 79.1
   HG 20592
   ASME B16.5
   EN 1092-1
» Face to Face: MSS SP-81
» Operation: Manual, Bevel Gear, Pneumatic, Electric, Hydraulic
» Ends Connections: Wafer Type

Product Features

» Split-Body Design: The machined inner body prevents media adhesion within the valve cavity, ensuring smooth operation.
» Full Port Design: Minimizes pressure drop and maximizes flow capacity for efficient operation.
» Double Packing: Packing at both the top and bottom eliminates leakage to the surrounding environment, ensuring a tight seal.
» Through Gate with O-Port: The gate cuts through the media with an O-port disc when closing, and the portion is returned when opening. Gate thickness can be increased for higher pressure applications.
» Polished Gate Surface: Both sides of the gate are polished to provide a tight seal and minimize jamming.
» Hard Chrome Coating: The gate is coated for enhanced metal sealing and durability.
» Replaceable Side-Entry Seat: Reduces maintenance costs by allowing easy seat replacement.
» L-Shape Seat Retainer: Locks the seat into the valve body and covers the seat side to prevent direct flow flushing.
» Bi-Directional Flow: With seats on both sides, the valve can handle flow in both directions equally.
» Stem Cover: Available to protect the stem and extend its service life.
» Low Torque Operation: Two thrust bearings are used to minimize torque for easier operation.
» Grease Nipple: For easy lubrication of bearings, ensuring smooth and long-lasting valve performance.
