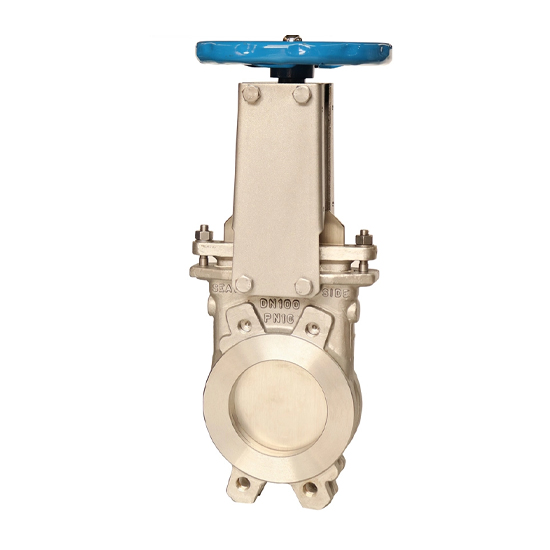

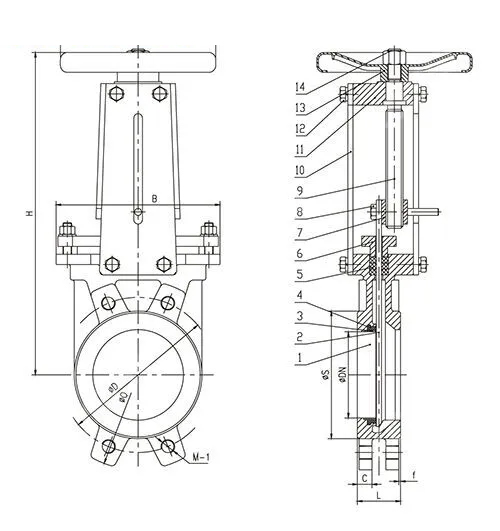

Non-rising Stem Knife Gate Valve, ASTM A351 CF8, DN100, PN10

Key Specifications / Features

This Non-Rising Stem Knife Gate Valve features a robust ASTM A351 CF8 stainless steel body for excellent corrosion resistance. With a 4-inch size (DN100), Class 150 LB pressure rating, and PN10 compatibility, the wafer-type ends ensure easy installation between flanges, and the valve is operated manually using a handwheel for precise control.

The manual knife gate valve is a unidirectional, wafer-style knife-edge gate valve designed for on-off operation in industrial pipelines. The body and seat design prevent clogging during shutoff, even with fine particles in the flow. The beveled knife edge allows the gate to easily cut through thick media. Various types are available to suit different working conditions, including non-rising stem knife gate valves, wafer knife gate valves, lugged knife gate valves, pneumatic knife gate valves, electric knife gate valves, manual knife gate valves, and bevel gear knife gate valves.

Technical Specification

» Structure: Unidirectional Wafer Knife Wedge Gate Valve
» Nominal Diameter: NPS 2-24 Inch (DN50-DN600)
» Design Pressure: PN10, PN16, Class 150 LB
» Temperature Range: -29°C to +538°C
» Max Working Pressure:
DN50 to DN250: 10 bar
DN300 to DN450: 7 bar
DN500 to DN600: 4 bar
» Body Material: Ductile Iron, Carbon Steel, Stainless Steel, Special Alloys, etc.
» Disc Material: Stainless Steel Chrome Plated, Special Alloys, etc.
» Seat Material: Stainless Steel + STL, EPDM (120°C), Viton (200°C), PTFE (200°C), NBR (80°C)
» Flange Standard: GB/T 9113.1, JB/T 79.1, HG 20592, ASME B16.5, EN1092-1
» Face to Face: MSS SP-81
» Applications: Pulp & Paper, Water Treatment, Beverage & Food, Fine Chemicals, Power Plants, Steel Industry, etc.

Product Features

» High flow capacity with minimal pressure drop
» Gate with rounded edges to enhance the lifespan of rings and packing
» Directional arrow on the body to indicate the correct installation orientation
» Protector tube for additional protection
» Interchangeable drives between handwheel and pneumatic actuator
» Epoxy-coated valves for effective corrosion resistance
» Ideal for water with up to 5% solid particle concentration
