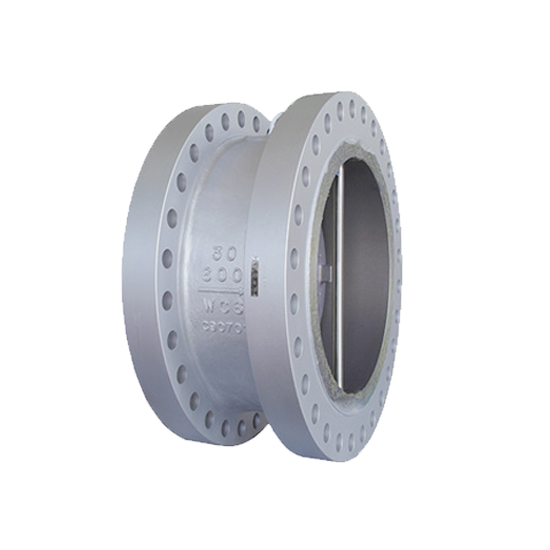

ASTM A217 WC6 Wafer Check Valve, API 594, 30 Inch, 300 LB

Key Specifications / Features

The ASTM A217 WC6 Wafer Check Valve, manufactured as per API 594 standards, features an alloy steel body for superior strength and corrosion resistance. With a size of 30 inches (DN750) and a pressure rating of Class 600 LB, PN100, this valve is designed to handle high-pressure systems efficiently. It is equipped with double flanged ends for secure, leak-free installation.

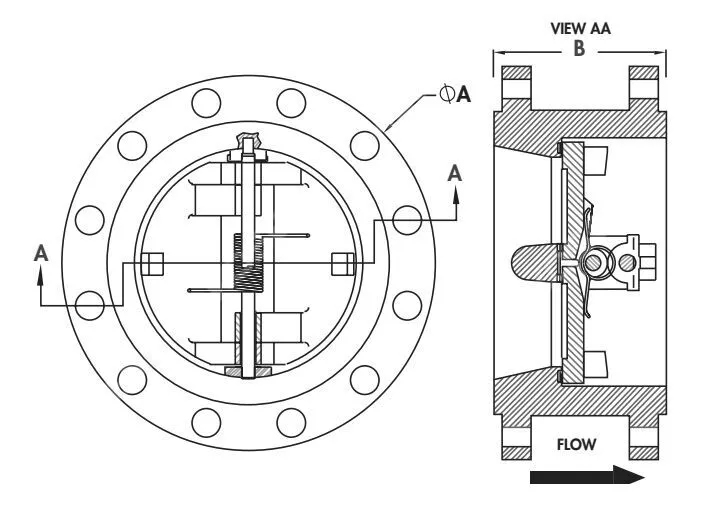

We are a specialized manufacturer of wafer check valves featuring a unique center vertical pin shaft design. When the valve opens, the resultant force of the fluid acts on the center of the disc's sealing face, while the counter spring support force is applied to the center of the disc surface. This design ensures that the root of the disc opens first, preventing wear on the sealing surface, unlike traditional valves. The wafer check valve operates automatically, opening and closing based on the flow of the medium, and is used to prevent reverse flow.

Technical Specifications

» Nominal Diameter: NPS 2–60 Inch (DN50–DN1500)
» Design Pressure: Class 150–2500 (PN10–PN420)
» Materials: ASTM A216 WCB, WCC, A217 WC6, WC9, C5, C12A, A352 LCB, LCC, A351 CF8, CF8M, CF3M, CF8C
» End Connections: wafer, Lug, Flanged.
» Design and Manufacture Standards: API 594, API 6D, JB/T 8937
» Face-to-Face (End-to-End): API 594, API 6D, JB/T 8937, DIN 3202
» Flanged Connection Standards: ANSI B16.5, DIN 2543–48, JB/T 9112–24
» Test and Inspection Standards: API 598, DIN 3230, JB/T 9092
» Temperature Range: -29°C to 150°C
» Medium: Water, gas, oil, etc.

Product Features

» Light and Compact: Designed for easy installation and space-saving without compromising performance.
» Zero Leakage Sealing Design: Features a soft-seated design that ensures a tight seal with no leakage.
» Non-Slam Design: Prevents disc slamming, offering smooth operation and reducing wear.
» Bubble-Tight Closure: Guarantees reliable sealing, even under high-pressure conditions.
» Wide Disc Opening: Discs open up to 85°, minimizing pressure drop and enhancing flow efficiency.
