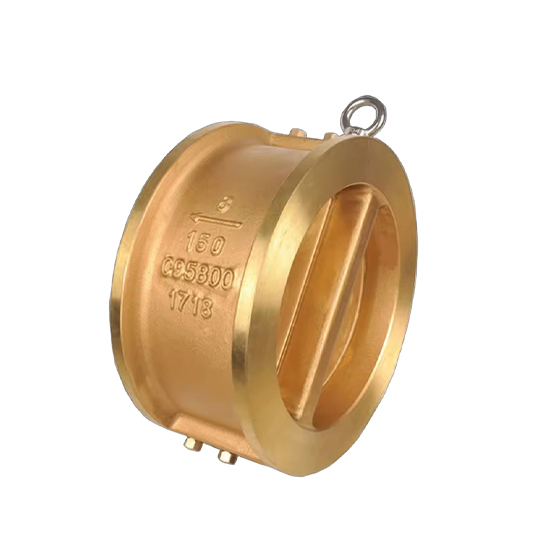

ASTM B148 C95800 Wafer Check Valve, API 594, 8 Inch, CL150

Key Specifications / Features

We supply Aluminum Bronze Wafer Check Valves with a dual plate design, adhering to API 594 standards. These valves feature an ASTM B148 C95800 body, offering robust performance. Available in an 8-inch (DN200) size with a Class 150 LB (PN20) pressure rating, they ensure reliable backflow prevention in various applications.

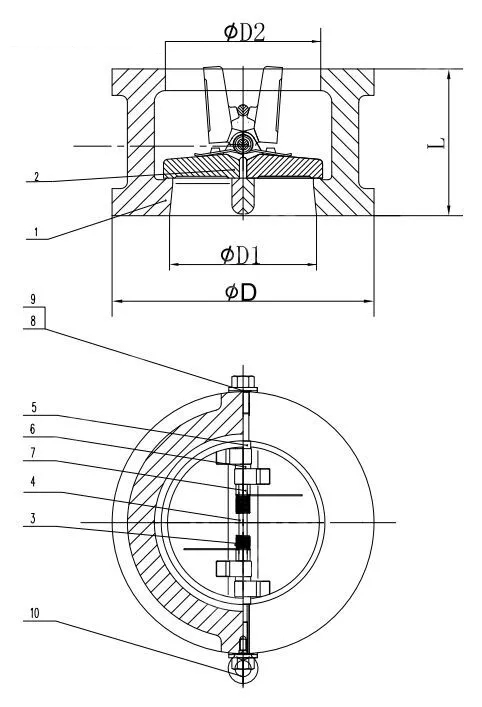

We specialize in manufacturing wafer check valves. The design features a central vertical pin shaft. When the valve opens, the fluid's force is concentrated on the center of the disc's sealing surface, while the counter spring's support force acts on the disc's center. This ensures the disc's base opens first, reducing wear on the sealing surface seen in traditional valve designs and improving the durability of the valve seal. The wafer check valve operates automatically, opening and closing based on the flow of the medium, and is designed to prevent reverse flow.

Technical Specification

» Nominal Diameter: NPS 2–60 Inch (DN50–DN1500)
» Design Pressure: Class 150 LB, PN10, PN16
» Material Options: ASTM B148 C95400, C95500, C95800, B150 C63000, C63200
» End Connections: Wafer, Lug, Flanged
» Design & Manufacture Standards: API 594, API 6D, JB/T 8937
» Face-to-Face (End-to-End) Standards: API 594, API 6D, JB/T 8937, DIN 3202
» Flanged Connection Standards: ANSI B16.5, DIN 2543–48, JB/T 9112–24
» Test & Inspection Standards: API 598, DIN 3230, JB/T 9092
» Temperature Range: -29°C to 150°C
» Medium: Sea Water, Offshore, Marine

Product Features

» Light and Compact
» Zero Leakage Sealing Design with Soft Seat
» Non-Slam Design
» Bubble-Tight Closure
» Discs Open 85° to Ensure Low Pressure Drop
