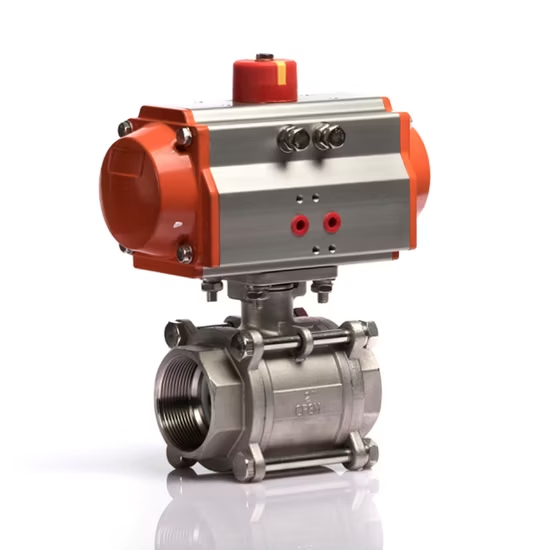

Dn25 Single Acting 2 Way Pneumatic Actuator Ball Valve
- Type:
- Fixed Ball Valve
- Body Material:
- Stainless Steel 304 or 316
- Application:
- Industrial Usage, Water Industrial Usage, Household Usage
- Medium:
- Air, Water, Oil, Hot Water, Steam
- Features:
- on-off Type
- Structure:
- Fixed Ball Valve
- Nominal Pressure:
- PN1.0-32.0MPa
- Working Pressure:
- 800psi~1000psi
- Ball:
- Ss316
- Temperature:
- Normal Temperature
- Medium Pressure:
- 0~16bar
Product Description
Double acting stainless steel pneumatic actuator ball valve
1. Actuator type: Double acting, also have single acting
2. Ball valve size: DN25 (ZG 1")
3. Thread standard: BSPT
4. Fluid: Air, Water, steam, water treatment
5. Pressure class: 1000WOG
6. Payment: L/C, Western Union or T/T
7. Mini order quantity: 1 piece
Basic information about Pneumatic actuator ball valve:
Actuator:
- Full conformance to the specifications of: ISO5211, DIN3337, VDI/VDE3845, NAMUR.
- The extruded high strength aluminum bodies are precision honed and hard anodized yielding an internal bore surface that can provide low coefficient of friction, smooth performance and a long service life.
- All acting surfaces are fitted with high quality bearings, resulting in low friction, quite and high cycle life.
- The two independent external travel stop adjustment bolts can easily and precisely adjust up to ±5º at both open and closed directions.
- Multifunction position indicator with NAMUR standard is convenient for mounting accessories.
- Pre-compressed load springs are convenient for safe mounting and disassemble operations.
- Die-casted aluminum pistons and end caps are high strength and light weight.
- Optional Viton and Silicone seals are available for low and high temperature applications.
| Valve body material | CF8 or CF8M |
| Fluid | Air, water, steam |
| Fluid pressure | 0~16bar |
| Actuator air pressure | 0.3~0.8MPa |
