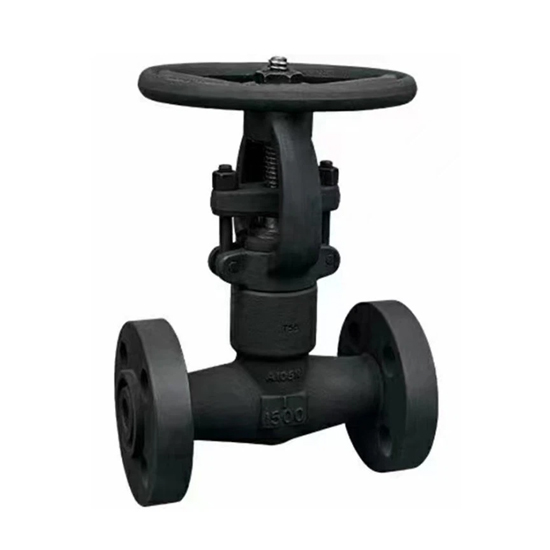

Class 1500 LB Gate Valve, API 602, A105N, 1 Inch, PSB, RTJ

Key Specifications / Features

The China Class 1500 LB Gate Valve Manufacturer produces high-quality Pressure Seal Bonnet Gate Valves designed to meet API 602 standards. These valves feature a forged carbon steel body made from ASTM A105N material, ensuring durability and reliability. With a 1-inch size (DN25), they are rated at Class 1500 LB and PN250, making them suitable for high-pressure applications. The valves come with a ring-type joint (RTJ) flange and are operated manually using a handwheel.

Pressure Seal Gate Valves are meticulously designed and manufactured in strict compliance with international standards such as API 602, ASME B16.34, DIN 3202, or equivalent. These valves feature a compact yet extremely robust construction, making them ideal for high-pressure and high-temperature applications. The optional solid CoCr alloy wedge ensures low friction and extended service life. The packing rings are precompressed to 4000 psi, providing a highly reliable seal. For welded bonnet valves, the bonnet is threaded in and torqued to an engineered torque value, and the body-bonnet joint is strength-welded, offering dual protection against leakage (through body and bonnet threads as well as the strength-weld). The fully guided wedge reduces wear on seating surfaces. Optional designs are available with double packing, leak-off connections, live-loading, and a packing blowout feature, facilitating the easy removal of old packing.

Technical Specification

» Size Range: 1/2-4 Inch (DN15-DN100) (for Forged Items)
» Design Pressure: Class 900-2500 LB (PN150-PN420)
» Materials:
   Carbon Steel, Alloy Steel, Stainless Steel, Duplex Steel, etc
   ASTM A105N, A350 LF2, A182 F11, F22, F304, F304L, F316, F316L
» Trim Materials: 13%Cr, ASTM A182 F11, F22, SS 304, SS 304L, SS 316, SS 316L, and other specials
» End Connections: BW, RTJ
» Design and Manufacture: ASME B16.34, API 602
» Face to Face (End to End): ANSI B16.10
» Flanged Connection: ANSI B16.5
» Test and Inspection: API 598, API 6D
» Butt Welded Ends: ANSI B16.5

Product Features

» OS&Y, Outside Stem and Yoke
» Metal-sealed (API Trim #1, #5, #8, #10, etc.)
» Optional Locking Device or Stem Extension
» Optional Welded Bonnet or Pressure Sealed Bonnet
» Optional Direct Mounting to ISO 5211
» Full Bore or Reduce Port
