Pressure Seal Bonnet Gate Valves, A105N, 1 Inch, CL1500, RTJ

Key Specifications / Features

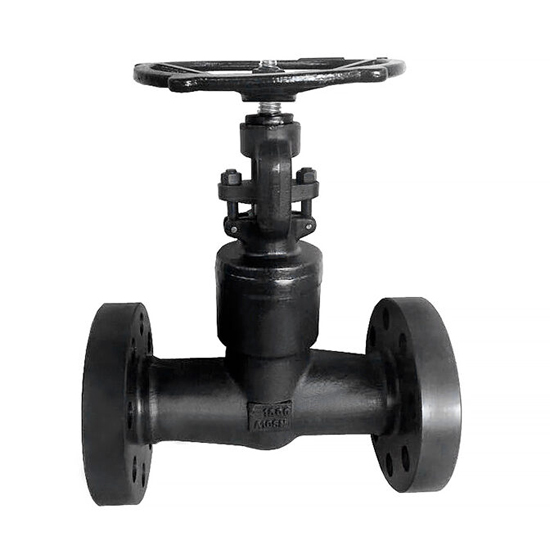

China Pressure Seal Bonnet Gate Valves Factory manufactures API 602-compliant forged carbon steel gate valves with RTJ flanged ends for high-pressure sealing. These 1-inch (DN25) valves are constructed from ASTM A105N material, rated for Class 1500 LB (PN250), and feature a handwheel for precise operation. Designed for steam, oil & gas, and power applications, they ensure reliable shut-off in extreme pressure and temperature conditions.

Pressure Seal Gate Valves are designed and manufactured in strict accordance with international standards such as API 602, ASME B16.34, DIN 3202, or equivalent. They feature a compact yet extremely robust design, suitable for high-pressure and high-temperature applications. The optional solid CoCr alloy wedge ensures low friction and extended service life. The packing rings are precompressed to 4000 psi to provide a highly reliable seal. For welded bonnet valves, the bonnet is threaded in and torqued to an engineered torque value, and the body-bonnet joint is strength-welded. This offers double protection against leakage through the combination of body, bonnet threads, and strength-weld. The fully guided wedge reduces wear on seating surfaces. Optional designs are available with double packing, leak-off connection, live-loading, and a packing blowout feature for easy removal of old packing.

Technical Specification

» Size Range: 1/2-4 Inch (DN15-DN100) (for Forged Items)
» Design Pressure: Class 900-2500 LB (PN150-PN420)
» Materials:
   Carbon Steel, Alloy Steel, Stainless Steel, Duplex Steel, etc
   ASTM A105N, A350 LF2, A182 F11, F22, F304, F304L, F316, F316L
» Trim Materials: 13%Cr, ASTM A182 F11, F22, SS 304, SS 304L, SS 316, SS 316L, and other specials
» End Connections: BW, RTJ
» Design and Manufacture: ASME B16.34, API 602
» Face to Face (End to End): ANSI B16.10
» Flanged Connection: ANSI B16.5
» Test and Inspection: API 598, API 6D
» Butt Welded Ends: ANSI B16.5

Product Features

» OS&Y, Outside Stem and Yoke
» Metal-sealed (API Trim #1, #5, #8, #10, etc.)
» Optional Locking Device or Stem Extension
» Optional Welded Bonnet or Pressure Sealed Bonnet
» Optional Direct Mounting to ISO 5211
» Full Bore or Reduce Port
