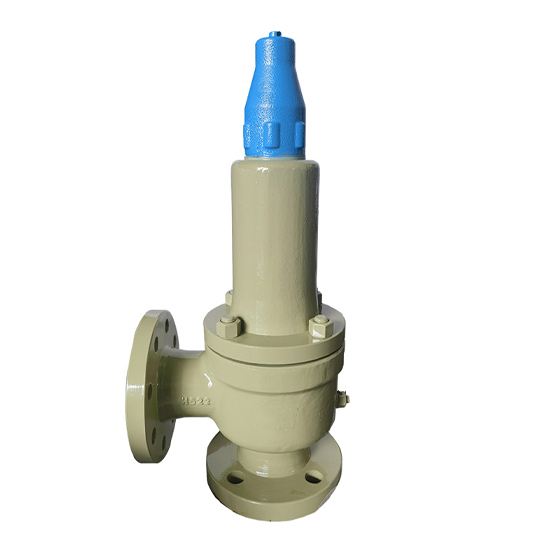

ASTM A216 WCB Safety Valve, API 526, DN50, PN64, Full Lift

Key Specifications / Features

The ASTM A216 WCB Safety Valve, manufactured in compliance with API 526 standards, features a carbon steel body for durability and strength. With a DN50 (2-inch) size, Class 400 LB pressure rating, and PN64, it is designed for full lift and spring-loaded operation, providing reliable pressure relief in critical systems. The flanged ends ensure secure and easy installation.

The Spring Full Lift Safety Valve is designed for systems with relatively simple discharge requirements. It can be used in systems where the discharge pressure is atmospheric, constant, or may increase up to a maximum of 10% above the set pressure. In cases with constant back pressure, the valve should be set to the differential pressure. The valve disc sealing surface is available in two types: flat and conical. The discharge area is calculated based on the cylindrical or conical surface formed between the valve disc and seat. This valve is ideal for applications with small discharge capacities, high back pressure, and stable system pressure.

Technical Specifications

» Normal Size Range: 1/2-16 Inch (DN15-DN400)
» Normal Pressure Rating: Class 150-600 LB (PN10-PN100)
» Materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex, or Other Specials
» Design and Manufacture: GB/T 12243-1989, API RP 520, 521, API 526, API 527
» Face to Face (End to End): GB/T 14087, JB/T 6441, JB/T 2203, JB/T 9624, JB/T 53170
» Flanged Connection: ASME B16.5, DIN 2543 to 2545, EN 12627
» Test and Inspection: API 598, DIN 3230, MSS SP-117
» End Connections: Flanged (FF, RF, RTJ) to international standards
» Working Medium: gas, liquid and steam

Product Features

» Lighter and More Compact Construction: Continuous design improvements have resulted in smaller and lighter valves, aligning with current industry trends focused on space and weight savings.
» Interchangeable Parts: The valves can be easily modified from one type to another (e.g., gas, liquid, conventional, and bellows) by changing only a few parts.
» Simplified Maintenance and Service: Re-engineered with fewer parts, the valves offer easier and more cost-effective maintenance.
» Material Selection: A wide range of materials are available, including non-ferrous options for low-temperature and oxygen service, as well as exotic alloys specifically tailored for the chemical and process industries.

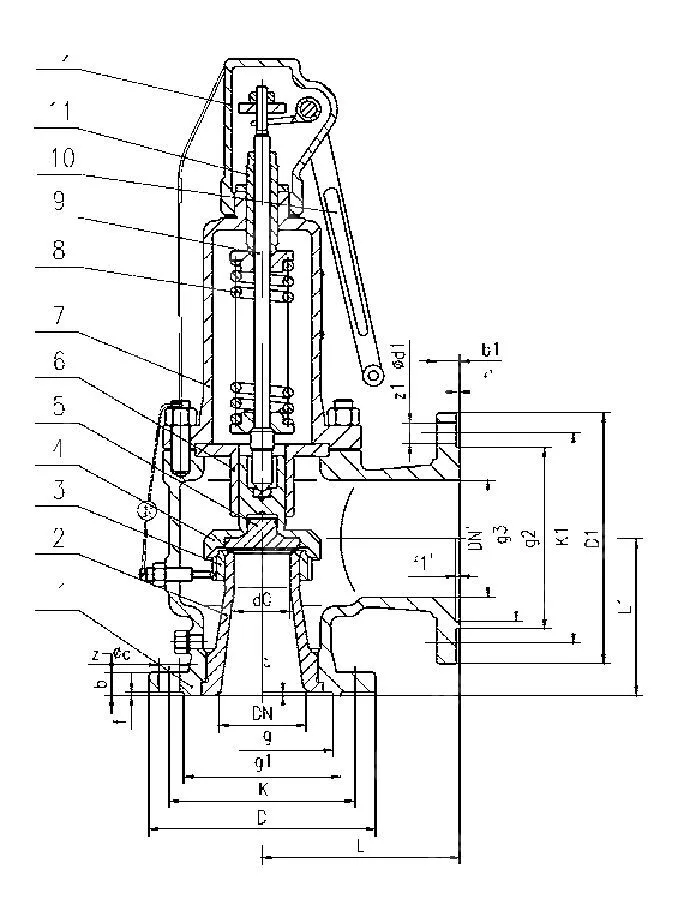

Main Parts and Materials
