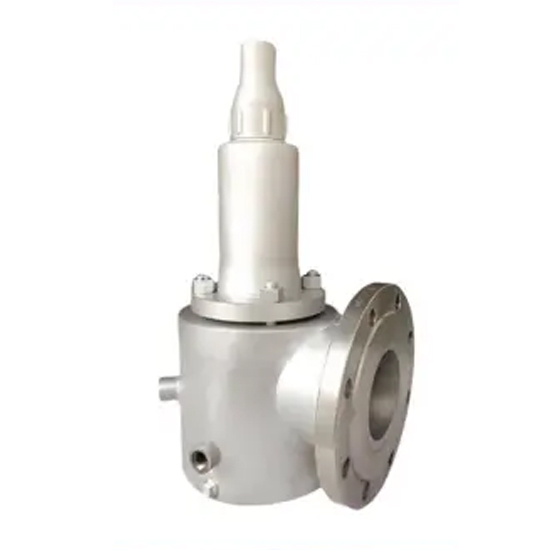

Steam Jacketed Safety Valve, API 526, A351 CF8, DN50, PN16
- Product Name:
- Steam Jacketed Balanced Bellows Safety Valve
- Design Standard:
- API 526
- Body Material:
- ASTM A351 CF8
- Size:
- DN50, 2 Inch
- Pressure:
- PN16, Class 150 LB
- End Connection:
- RF Flanged
Key Specifications / Features
The Steam Jacketed Safety Valve, designed with balanced bellows and built to API 526 standards, features a stainless steel ASTM A351 CF8 body for strength and corrosion resistance. With a 2-inch (DN50) size, it supports PN16 and Class 150 LB pressure ratings, and comes with RF flanged ends for easy installation. Ideal for steam applications, this safety valve ensures reliable pressure relief, maintaining system integrity and safety under high-pressure conditions.
The Safety Valve is specifically designed for use in polyester, ethylene, urea, and other industrial processes. This safety valve is equipped with an Insulation Jacket and a steam purge joint to ensure safe and reliable operation of the system.
The discharge area of the safety valve is calculated based on the cylindrical or conical surface formed between the valve disc and the valve seat. This design makes it particularly suitable for applications with small discharge capacities, large back pressures, and stable system pressures. The Safety Valve provides a reliable solution for maintaining system safety and efficiency in demanding industrial environments.
Technical Specifications
» Normal Size Range: 1/2-12 Inch (DN15-DN300)
» Normal Pressure Rating: Class 150-300 LB (PN10-PN40)
» Materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex, or Other Specials
» Design and Manufacture: GB/T 12243-1989, API RP 520, 521, API 526, API 527
» Face to Face (End to End): GB/T 14087, JB/T 6441, JB/T 2203, JB/T 9624, JB/T 53170
» Flanged Connection: ASME B16.5, DIN 2543 to 2545, EN 12627
» Test and Inspection: API 598, DIN 3230, MSS SP-117
» Ends Connections: RF Flange
» Working medium: used for polyester, ethylene, urea

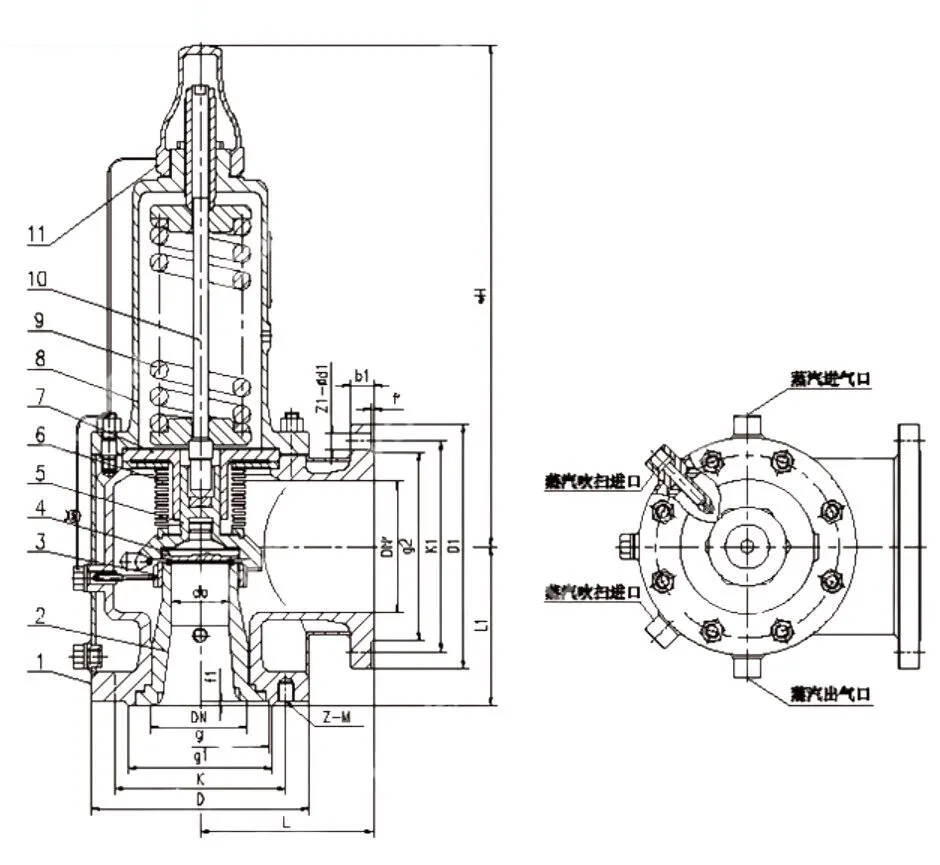

Main Parts and Materials
| No | Name of Parts | Carbon steel | Stainless steel | Stainless steel |
| 1 | Body | A216 WCB | A351 CF8 | A351 CF8M |
| 2 | Nozzle | SS 304 | SS 304 | SS 316 |
| 3 | Adjusting Ring | SS 304 | SS 304 | SS 316 |
| 4 | Disc | SS 304 | SS 304 | SS 316 |
| 5 | Disc Holder | SS 304 | SS 304 | SS 304 |
| 6 | Bellows | SS 316L | SS 316L | SS 316L |
| 7 | Guide Sleeve | 50CrVA | 50CrVA | 50CrVA |
| 8 | Bonnet | ZG230-450 | SS 304 | SS 316 |
| 9 | Spring | 50CrVA | 50CrVA+Coated Teflon | |
| 10 | Stem | 2Cr13 | SS 304 | SS 316 |
| 11 | Cap | ZG230-450 | SS 304 | SS 316 |
| 12 | Sealing surface | Overlay STL | Overlay STL | Overlay STL |
