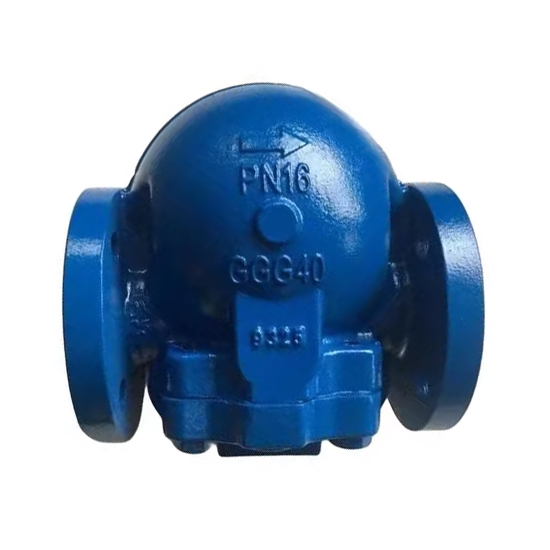

GGG40 Ball Float Steam Trap, EN 26704, DN25, PN16, RF End

Key Specifications / Features

The Ductile Iron GGG40 Ball Float Steam Trap, manufactured to ISO 6552 and EN 26704 standards, features a durable GGG40 ductile iron body. With a 1-inch (DN25) size, PN16, and Class 150 LB pressure rating, it ensures reliable steam trapping in various applications. The trap is equipped with RF flanged ends for secure, leak-proof connections.

The Ball Float Steam Trap (FT44 Flange) is designed to efficiently handle both light and heavy condensate loads, offering high discharge capacity in a compact size. These traps ensure continuous and maximum heat transfer, making them ideal for draining plants with automatic temperature control. They feature reliable water sealing to prevent steam leakage and are silent before operation, promoting environmental protection. At startup, all valves open, expelling low-temperature condensate water and air rapidly to shorten the equipment start time. The internal components are made of stainless steel, providing resistance to corrosion and cavitation erosion.

Technical Specifications

» Normal Size Range: 1-1/4 Inch to 2-1/2 Inch (DN32-DN65)
» Normal Pressure Rating: PN16, PN25, Class 150 LB
» Materials: GGG40, ASTM A216 WCB, A351 CF8, CF8M, CF3, CF3M
» PMA (Maximum Allowable Pressure): 40 Barg
» TMA (Maximum Allowable Temperature): 300°C
» Maximum Differential Pressure (ΔPMX): 32 Bar
» Medium: Steam condensate

Standards Compliance

» Design and Manufacture: ISO 6552, EN 26704
» Face to Face (End to End): EN 26554
» Flanged Connection: GB/T 9113
» Test and Inspection: EN 26948

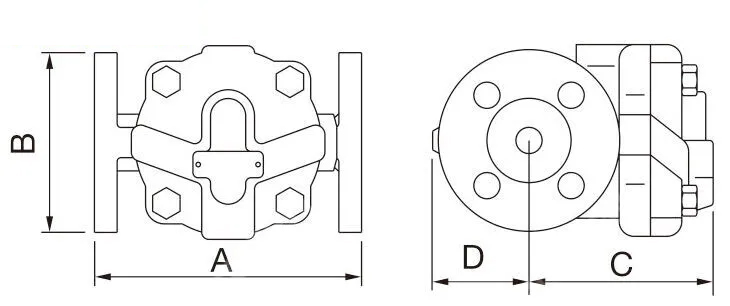

Main Dimensions
