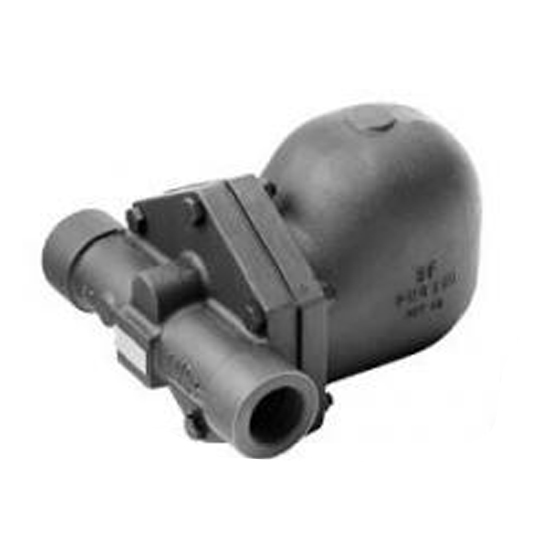

Single-seat Ball Float Steam Trap, ISO 6552, WCB, DN50, PN16

Key Specifications / Features

The Single-seat Ball Float Steam Trap, manufactured to ISO 6552, EN 26704 standards, features an ASTM A216 WCB body for durability. With a 2-inch (DN50) size, PN16, and Class 150 LB pressure rating, it is designed for efficient steam trapping. The valve includes threaded end connections for secure installation and reliable performance in steam systems.

The Ball Float Steam Trap (FT14 Thread) is designed for high efficiency in draining both light and heavy condensate loads. Despite its compact size, it offers high continuous discharge capacity, ensuring optimal heat transfer. This steam trap is ideal for use in plants with automatic temperature control. With reliable water sealing, the trap ensures no steam leakage and maintains a steady presence of condensate water in front of the valve. It operates silently before activation, supporting environmental protection. During startup, all valves open, allowing the rapid expulsion of low-temperature condensate water and air, thus reducing equipment startup time. The internal components are made of stainless steel, providing resistance to corrosion and cavitation erosion.

Technical Specifications

» Normal Size Range: 1-1/4 Inch to 2 Inch (DN32-DN50)
» Normal Pressure Rating: PN16, PN25, Class 150 LB
» Materials: ASTM A216 WCB, A351 CF8, CF8M, CF3, CF3M
» PMA (Maximum Allowable Pressure): 25 Barg
» TMA (Maximum Allowable Temperature): 300°C
» Maximum Differential Pressure (ΔPMX): 14 Bar
» Medium: Steam condensate

Standards Compliance

» Design and Manufacture: ISO 6552, EN 26704
» Face to Face (End to End): EN 26554
» Flanged Connection: GB/T 9113
» Test and Inspection: EN 26948

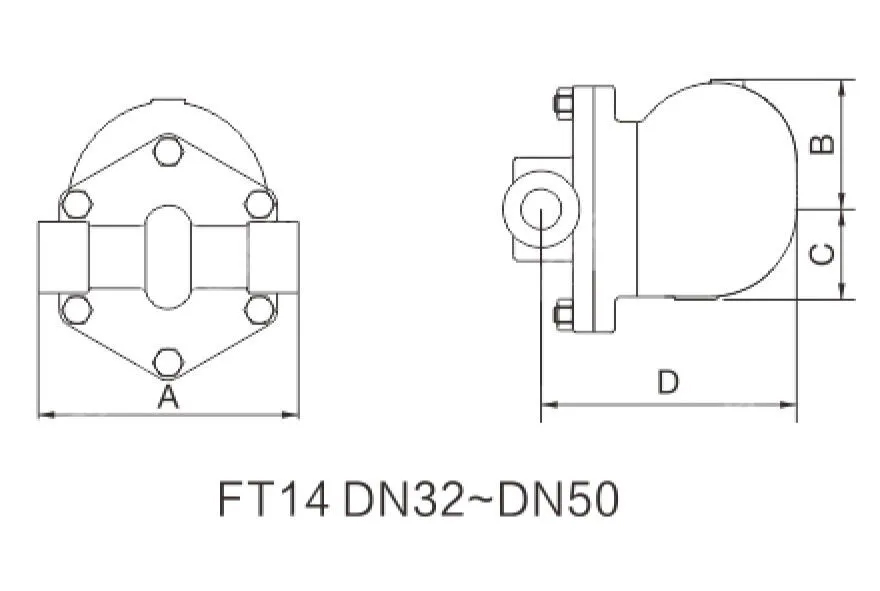

Main Dimensions
