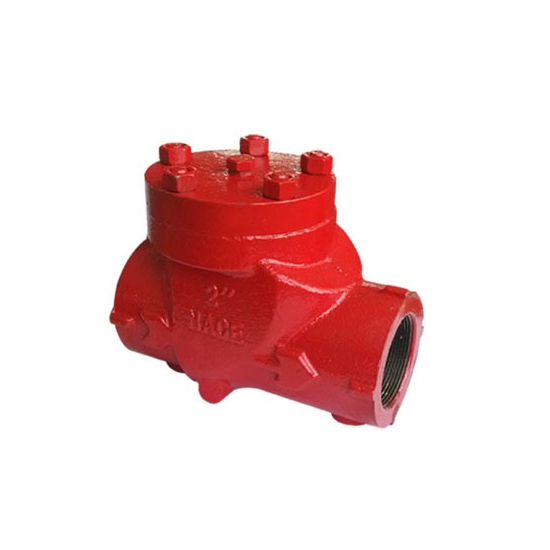

5000 PSI Swing Check Valve, A216 WCB, NACE MR0175, 2 IN, NPT

Key Specifications / Features

We manufacture 5000 PSI Swing Check Valves with a carbon steel ASTM A216 WCB body, featuring a full port design for unrestricted flow. These 3-inch (DN80) valves meet NACE MR0175 requirements, ensuring resistance to sulfide stress cracking. They are equipped with NPT threaded ends for easy installation and reliable performance in demanding applications.

This top-entry swing check valve is available in ductile iron, carbon steel, and aluminum bronze, with sizes ranging from 1 Inch to 4 Inch. Stainless steel discs come as standard. The Series D features an improved design that simplifies bonnet removal. With its patented Hinge-Works feature, this valve offers extended service life. It is suitable for a variety of industrial applications, including hydraulics, pneumatics, pumps, and plumbing. The Oil Field Check Valve is particularly ideal for oil and gas production lines where backflow prevention is critical. Offering simplicity and easy repairability, the swing check valve allows for top-entry access to the valve internals. Its primary function is to prevent backflow in the pipeline.

Technical Specifications

» Size Ranges: NPS 1–4 Inch (DN25–DN100)
   2 Inch and 3  Inch models with a plug on the cap
   1 Inch model without a plug on the cap
» Pressure Range: 3000 to 5000 PSI WP
» Body Material: ASTM A216 WCB
» Disc Material: SS 304
» Seat and Seal: Viton
» Port: Full Open
» End Connections: ASME B1.20.1 (NPT)
» NACE MR-0175 Compliance
» Inspection and Test: According to API 598
» Temperature Range: -20°C to 80°C
» Medium: Water, Oil, Gas

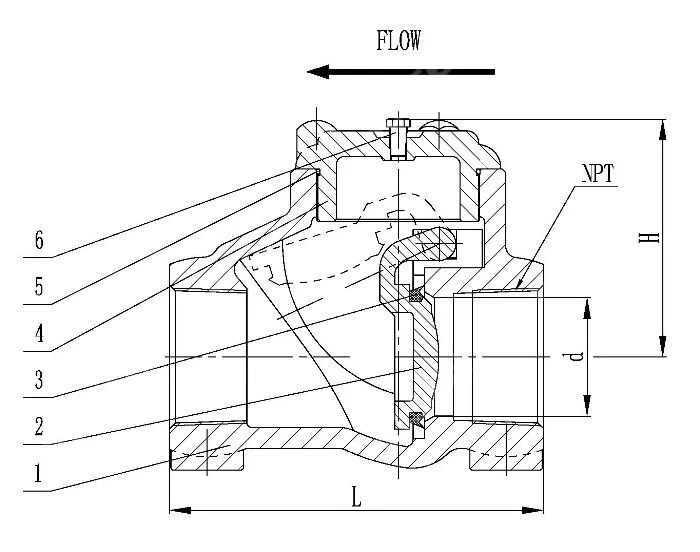

Main Parts and Materials

Main Dimensions (mm)
