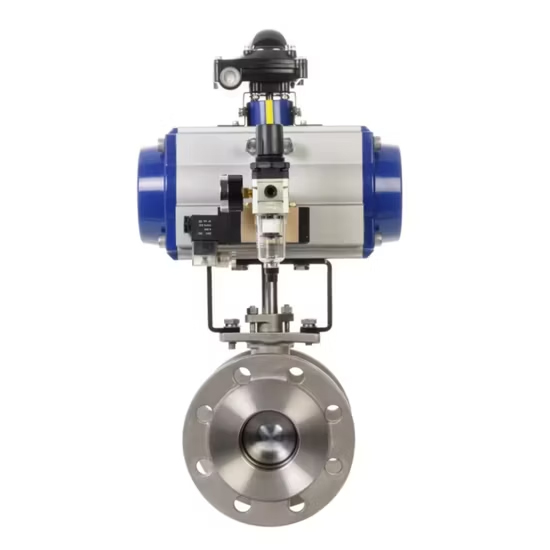

Factory OEM Flange Float Stainless Steel Ball Valve With Pneumatic Actuator
- Type:
- Fixed Ball Valve
- Application:
- Industrial Usage, Water Industrial Usage, Household Usage, Valve/Damper/HVAC
- Structure:
- Fixed Ball Valve
- Nominal Pressure:
- PN1.0-32.0MPa
- Standard:
- DIN3354/DIN2501/DIN3202
- Temperature:
- Normal Temperature
- HS Code:
- 8481804090
Q614/15F Three-way Threaded Ball Valves Overview
Q614/15F pneumatic three-way internal thread ball valve can be L-shaped or T-shaped. L-shaped (Q614F) three-way ball valve is used to switch the flow direction of the medium and can connect two perpendicular channels; T-shaped (Q615F) three-way ball valve is used for medium diversion, confluence and flow direction switching. T-shaped three-way can make three channels interconnected or connect two of them. Pneumatic three-way ball valve generally adopts two-seat structure, and can also adopt four-seat structure according to user requirements. It is widely used in water supply, petrochemical, metallurgy, mining, textile, energy, papermaking, food, steel and other pipeline systems to switch the flow direction of the medium and divert or mix the medium.
| Pneumatic Actuator Optional Features | Double acting, single acting |
| Pneumatic actuator optional models | AT series, AW series |
| Solenoid valve voltage | AC110V,AC220V,AC24V,DC24V |
| Air source pressure | 2bar ~8bar |
| Nominal diameter | DN15mm~DN50mm |
| Nominal pressure | PN0.1MPa-PN1.6MPa |
| Applicable temperature | PTFE: -30~+120ºC PPL: ≤350ºC Metal seal: ≤450ºC |
| Connection | Thread |
| Valve body material | 304, 316, 316L |
| Valve plate material | 304, 316, 316L |
| Valve seat lining | PTFE, PPL, metal seal |
| Applicable media | Water, petroleum, acid, viscous fluid, slurry medium, etc. |
