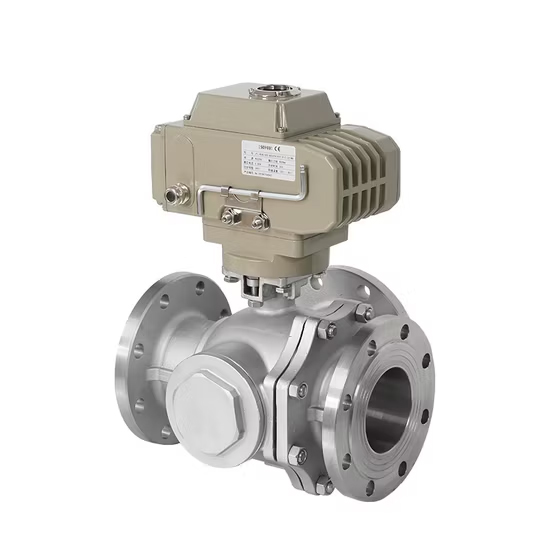

T-Type/L-Type Three-Way Flanged Ball Valve with Electric Actuator

PERFORMANCE ADVANGATE

1.Precision casting valve body.After the machining, the appearance of valve body is fine, nosand hole.

2.Solid and heavy type valve body.

3.PTFE soft seal, zero leakage.

4.From the raw material to the finished product,every process has strict inpection.

5.Each valve will be tested for pressure according to national standards.

TECHNICAL SPECIFICATION

Model:                                      Q945F-16P
Working Pressure :                  1.6Mpa
Working Temperature:              -29~120°C
Nominal Size:                           DN15-100
End Connection:                       BSP Threaded
Design Standard:                      HG20592(RF,FM,RJ);API600,DIN3202,ANSI 608,API6D
Face To Face:                           ASME B16.10,DIN EN558-1
Flange Drilling:                         ASME B16.5,DIN EN1092-2
Inspection And Test:                 API598,DIN EN12266-1

PRODUCT PARTS AND MATERIALS

Body Material:                          WCB,SS304,SS316,CF8,CF8M
Bonnet Material:                       WCB,SS304,SS316,CF8,CF8M
Ball Material:                            SS304,SS316,CF8,CF8M
Stem:                                        F304,F316
Seat:                                         PTFE,RPTFE
Operated:                                 Electric actuator
