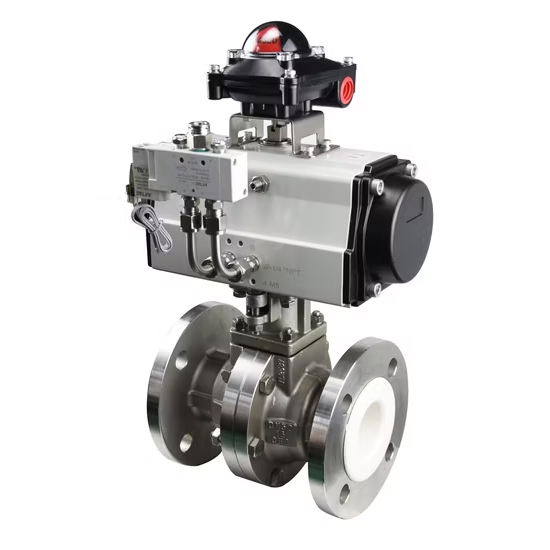

Pneumatic Actuator PTFE PFA Lined Flange Ball Valve For Air Treatment
- Body Material:
- CF8m, CF8, Wcb, 904L
- Application:
- Industrial Usage, Water Industrial Usage
- Pressure Rating:
- Pn40 for DN15-DN50, Pn16 for DN65- DN100
- Structure:
- Centre Sealing
- Seat Material:
- PTFE,P287
- Standard:
- API598
- Connection:
- Flanged Ends According to En1092-1
- Working Temperature:
- -20 to + 200 Degree Centigrade
- HS Code:
- 8481804090
- Valve Body:
- Casting
- Face to Face:
- DIN3202 F4
Series B55F PTFE lined ball valve with its body and ball full encapsulated by PFA, FEP or PTFE is for top corrosion medium with high reliability and safety.
FEATURES
• Exchangeable PTFE seat rings.
• Dovetail grooves machined into the body ensure locking of the lining to the body and reduce the effect of liner loading at the flanges.
• Metal to metal body joints ensure lining not squeezed out by pressure or thermal cycling.
• One piece Ball/Stem design for both regulating and shut off (B55F1), two piece Ball/Stem design for pressure up to 25bar (B55F2).
• Self adjusting packing of V-rings by a permanent spring loading provides stem seal integrity while maintaining low
turning torque.
• Full port flow path is designed for minimum pressure drop.
