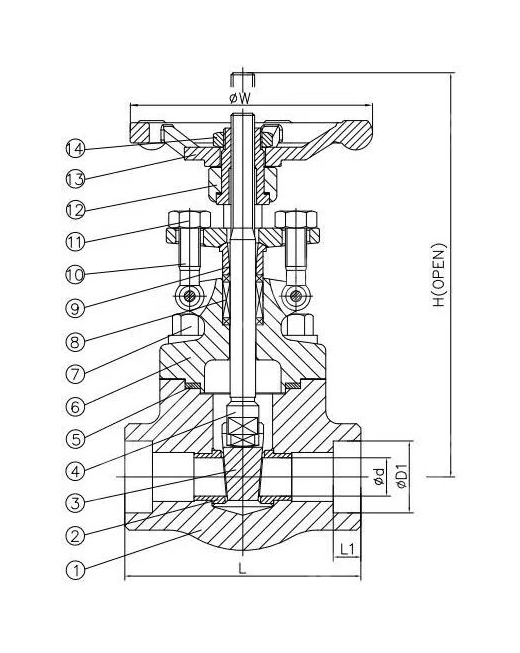

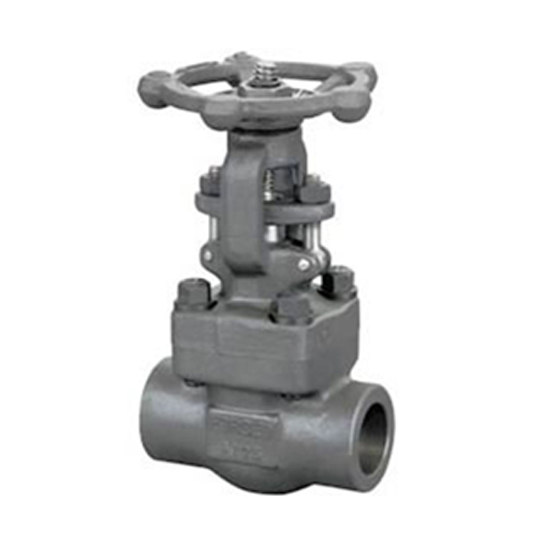

ASME B16.34 Gate Valve, API 602, A105N, 2 Inch, 1500 LB, SW

Key Specifications / Features

The ASME B16.34 Gate Valve, manufactured in China, adheres to API 602 standards and features a forged carbon steel ASTM A105N body for high strength and reliability. This 2-inch (DN50) valve is rated for Class 1500 LB and PN250 pressure classes, designed with SW (Socket Weld) ends for secure connections. It offers exceptional performance in high-pressure systems.

Forged Steel Gate Valves are designed and manufactured to meet international standards such as API 602, ASME B16.34, and DIN 3202. These valves feature a compact yet extremely sturdy design suitable for high-pressure and high-temperature service. Key Features are as follows:
» Solid CoCr Alloy Wedge (Optional): Ensures low friction and long service life.
» High-Integrity Seal: Packing rings are precompressed to 4000 psi.
» Welded Bonnet Valves: Bonnet is threaded in, torqued to an engineered value, and strength-welded for double protection against leakage.
» Fully Guided Wedge: Reduces wear on seating surfaces.
» Optional Designs: Available with double packing, leak-off connection, live-loading, and packing blowout for easy removal of old packing.

Technical Specification

» Size Range: 1/2-2 Inch (DN15-DN50) (for Forged Items)
» Design Pressure: Class 150-2500 LB (PN10-PN420)
» Materials:
   Carbon Steel, Alloy Steel, Stainless Steel, Duplex Steel, etc
   ASTM A105N, A350 LF2, A182 F11, F22, F304, F304L, F316, F316L
» Trim Materials: 13%Cr, ASTM A182 F11, F22, SS 304, SS 304L, SS 316, SS 316L, and other specials
» End Connections: SW, FNPT, BW, RF, RTJ, Grooved
» Design and Manufacture: ASME B16.34, API 602
» Face to Face (End to End): ANSI B16.10
» Flanged Connection: ANSI B16.5
» Test and Inspection: API 598, API 6D
» Butt Welded Ends: ANSI B16.5
» Threaded Ends: ASME B1.20.1
» Socket-Weld Ends: ASME B16.11
» Temperature Range: -29°C to 595°C
» Medium: Water, Gas, Oil, etc.

Product Features

» OS&Y (Outside Stem and Yoke)
» Metal-sealed (API Trim #1, #5, #8, #10, etc.)
» Optional Locking Device or Stem Extension
» Optional Bolted Bonnet, Welded Bonnet, or Pressure-Sealed Bonnet
» Optional Direct Mounting to ISO 5211
» Full Bore or Reduced Port
