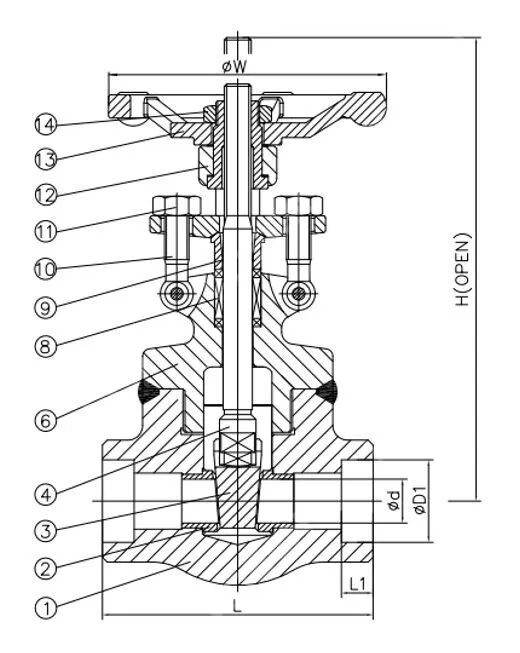

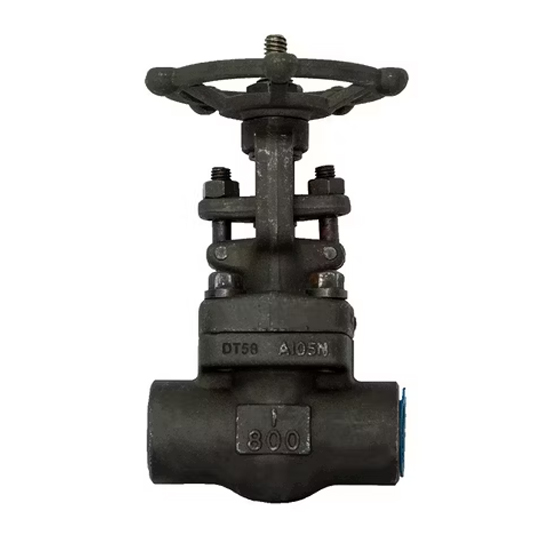

ASTM A182 F11 Gate Valve, API 602, 1 Inch, CL800, SW, BB

Key Specifications / Features

The ASTM A182 F11 Gate Valve is made from forged alloy steel and complies with API 602 standards. This 3/4-inch, DN20 valve is rated for Class 2500 LB and PN420 pressure classes, ensuring excellent performance in high-pressure systems. It features a bolted bonnet design for secure assembly and easy maintenance, with socket welded ends for reliable, leak-proof connections.

Forged Steel Gate Valves are designed and manufactured in strict compliance with international standards such as API 602, ASME B16.34, DIN 3202, or equivalent. These valves feature a compact yet extremely sturdy design, making them ideal for high pressure and high-temperature applications. An optional Solid CoCr Alloy Wedge ensures low friction and extends the valve's service life. The packing rings are pre-compressed to 4000 psi, providing a high-integrity seal.
For welded bonnet valves, the bonnet is threaded in and torqued to a specified value, and the body-bonnet joint is strength-welded, offering double protection against leakage (body, bonnet threads, and strength-weld). The fully guided wedge reduces wear on seating surfaces, enhancing durability.
Optional designs are available, including double packing, leak-off connection, live-loading, and a packing blowout feature for easy removal of old packing.

Technical Specification

» Size Range: 1/2-2 Inch (DN15-DN50) (for Forged Items)
» Design Pressure: Class 150-2500 LB (PN10-PN420)
» Materials:
   Carbon Steel, Alloy Steel, Stainless Steel, Duplex Steel, etc
   ASTM A105N, A350 LF2, A182 F11, F22, F304, F304L, F316, F316L
» Trim Materials: 13%Cr, ASTM A182 F11, F22, SS 304, SS 304L, SS 316, SS 316L, and other specials
» End Connections: SW, FNPT, BW, RF, RTJ, Grooved
» Design and Manufacture: ASME B16.34, API 602
» Face to Face (End to End): ANSI B16.10
» Flanged Connection: ANSI B16.5
» Test and Inspection: API 598, API 6D
» Butt Welded Ends: ANSI B16.5
» Threaded Ends: ASME B1.20.1
» Socket-Weld Ends: ASME B16.11
» Temperature Range: -29°C to 595°C
» Medium: Water, Gas, Oil, etc.

Features of Forged Steel Gate Valve

» OS&Y (Outside Stem and Yoke) design for enhanced durability
» Metal-sealed options, including API Trim #1, #5, #8, #10, and others
» Optional Locking Device or Stem Extension for added security and convenience
» Bonnet options: Bolted, Welded, or Pressure Sealed Bonnet
» Optional Direct Mounting to ISO 5211 for easy actuator attachment
» Available in Full Bore or Reduced Port configurations
