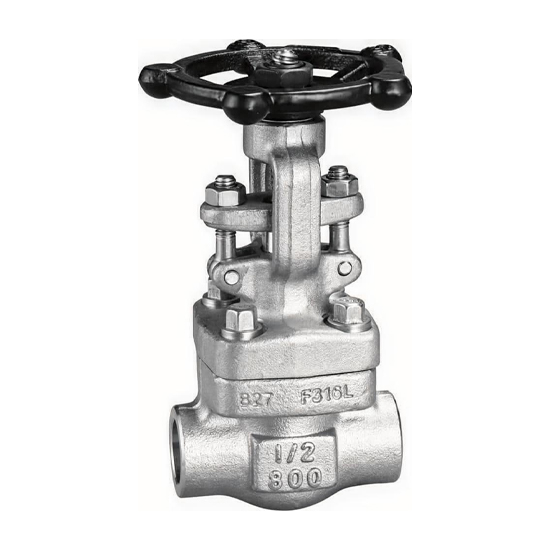

ASTM A182 F316L Gate Valve, API 602, 1/2 IN, 800 LB, BB, SW

Key Specifications / Features

The ASTM A182 F316L Gate Valve, supplied with a bolted bonnet and reduced bore design, is made from forged stainless steel for enhanced corrosion resistance and strength. Compliant with API 602 and ASME B16.34 standards, this 1/2-inch valve is rated for Class 800 LB pressure class and features socket weld ends for secure, leak-proof connections.

Forged Steel Gate Valves are designed and manufactured to International Standards API 602, ASME B16.34, DIN 3202 or equivalent. They feature a compact yet sturdy design for high pressure-temperature service. Options include:
» Solid CoCr alloy wedge for low friction and long service life
» Packing rings precompressed to 4000 psi for a high-integrity seal
» Welded bonnet valves with bonnet threaded in, torqued, and strength-welded for double leakage protection
» Fully guided wedge to reduce wear on seating surfaces
» Optional design with double packing, leak-off connection, live-loading, and packing blowout for easy removal of old packing

Technical Specification

» Size Range: 1/2-2 Inch (DN15-DN50) (for Forged Items)
» Design Pressure: Class 150-2500 LB (PN10-PN420)
» Materials:
   Carbon Steel, Alloy Steel, Stainless Steel, Duplex Steel, etc
   ASTM A105N, A350 LF2, A182 F11, F22, F304, F304L, F316, F316L
» Trim Materials: 13%Cr, ASTM A182 F11, F22, SS 304, SS 304L, SS 316, SS 316L, and other specials
» End Connections: SW, FNPT, BW, RF, RTJ, Grooved
» Design and Manufacture: ASME B16.34, API 602
» Face to Face (End to End): ANSI B16.10
» Flanged Connection: ANSI B16.5
» Test and Inspection: API 598, API 6D
» Butt Welded Ends: ANSI B16.5
» Threaded Ends: ASME B1.20.1
» Socket-Weld Ends: ASME B16.11
» Temperature Range: -29°C to 595°C
» Medium: Water, Gas, Oil, etc.

Product Features

OS&Y Design: Outside Stem and Yoke
Metal-Sealed: Available in various API trims (#1, #5, #8, #10, etc.)
Optional Accessories: Locking device or stem extension
Bonnet Options: Bolted bonnet, welded bonnet, or pressure-sealed bonnet
ISO 5211 Compatibility: Optional direct mounting
Port Options: Full bore or reduced port
