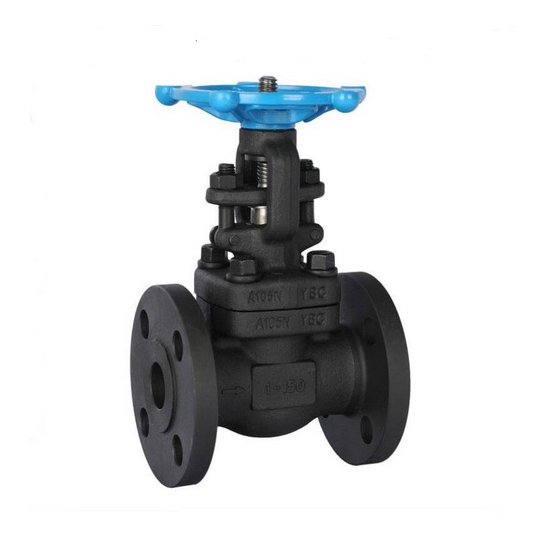

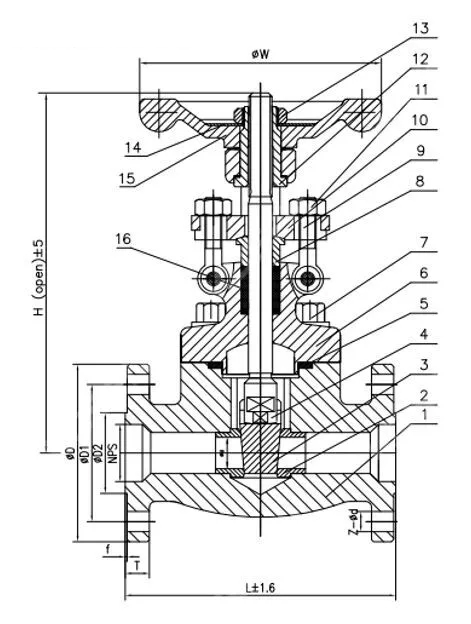

ASTM A105N Gate Valves, API 602, 1 IN, CL150, Bolted Bonnet

Key Specifications / Features

This ASTM A105N Gate Valve features a forged carbon steel body and is designed to meet API 602 standards. With a 1-inch (DN25) size and a pressure rating of Class 150 LB and PN20, it provides reliable performance in moderate-pressure applications. The valve is equipped with RF flanged ends for easy installation and secure sealing, making it an ideal choice for industries requiring durable flow control in compact, high-performance systems.

Forged Steel Gate Valves are designed and manufactured in strict compliance with international standards, including API 602, ASME B16.34, DIN 3202, or equivalent. These valves feature a compact yet robust design, making them ideal for high-pressure, high-temperature applications. The solid CoCr alloy wedge (optional) ensures low friction and an extended service life. Packing rings are pre-compressed to 4000 psi to provide a high-integrity seal. For welded bonnet valves, the bonnet is threaded in and torqued to a precise value, with the body-bonnet joint strength-welded, offering double protection against leakage (body, bonnet threads, and strength weld). The fully guided wedge minimizes wear on seating surfaces. Optional designs are available with double packing, leak-off connections, live-loading, and a packing blowout feature for easy removal of old packing.

Technical Specification

» Size Range: 1/2-2 Inch (DN15-DN50) (for Forged Items)
» Design Pressure: Class 150-2500 LB (PN10-PN420)
» Materials:
   Carbon Steel, Alloy Steel, Stainless Steel, Duplex Steel, etc
   ASTM A105N, A350 LF2, A182 F11, F22, F304, F304L, F316, F316L
» Trim Materials: 13%Cr, ASTM A182 F11, F22, SS 304, SS 304L, SS 316, SS 316L, and other specials
» End Connections: SW, FNPT, BW, RF, RTJ, Grooved
» Design and Manufacture: ASME B16.34, API 602
» Face to Face (End to End): ANSI B16.10
» Flanged Connection: ANSI B16.5
» Test and Inspection: API 598, API 6D
» Butt Welded Ends: ANSI B16.5
» Threaded Ends: ASME B1.20.1
» Socket-Weld Ends: ASME B16.11
» Temperature Range: -29°C to 595°C
» Medium: Water, Gas, Oil, etc.

Product Features

» OS&Y (Outside Stem and Yoke) design
» Metal-sealed (API Trim #1, #5, #8, #10, and others)
» Optional locking device or stem extension
» Optional bonnet designs: bolted, welded, or pressure-sealed
» Optional direct mounting to ISO 5211 standards
» Available in full bore or reduced port configurations
