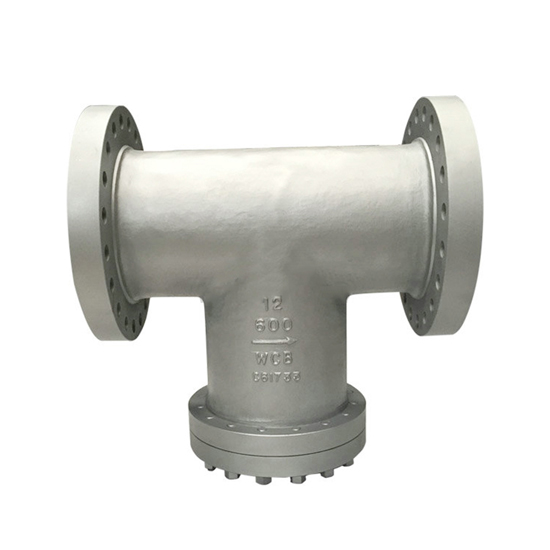

ASTM A216 WCB T Strainer, ASME B16.34, 12 Inch, CL600 LB, RF

Key Specifications / Features

The China ASTM A216 WCB T Strainer Supplier offers high-performance T strainers with a cast carbon steel body, adhering to ASME B16.34 standards. These strainers feature a 12-inch (DN300) diameter and are rated for Pressure Class 600 LB and PN100, making them suitable for high-pressure applications. The RF (Raised Face) flanged ends ensure secure and reliable connections. This T strainer is designed to efficiently remove impurities from fluid systems, providing robust performance and long-term durability.

The T Type Strainer is a pipeline filtration device designed to remove solid impurities from liquids in fluid processing systems. As the fluid passes through the strainer, contaminants are captured, ensuring the protection of downstream equipment such as pumps, compressors, and instrumentation. Maintenance is straightforward—simply remove the cartridge, clean out the retained particles, and reinstall. This easy operation ensures minimal downtime and convenient upkeep.

Technical Specifications

» Size Range: 2-12 Inch (DN50-DN300)
» Pressure Rating: PN16-PN40, Class 150 to 300 LB
» Material Options: 20# Carbon Steel, ASTM A216 WCB, A351 CF8, CF8M, CF3, CF3M
» Temperature Range: -29°C to +425°C
» End Connections: RF (Raised Face), BW (Butt Weld)

Standards Compliance

» Design & Manufacture: ANSI B16.34, API 600, API 6D
» Face-to-Face Dimensions: ANSI B16.10, API 6D
» Flanged Connections: ANSI B16.5 (2-24 Inch)
» Test & Inspection: API 598, API 6D
» Butt Weld Ends: ANSI B16.25
